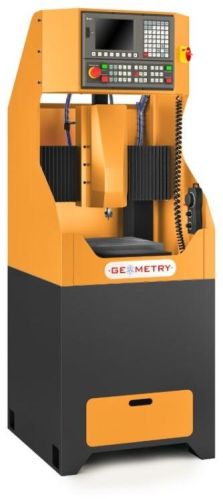

Contact SupplierSPECIFICATIONS | GDE HP 300L | GDE HP 400L |
---|---|---|
Table Size - Clamping Area | 350 x 350 | 500 x 400 |
Working Area X - Y - Z | 500 x 300 x 150 | 400 x 400 x 150 |
T Slot Size | 14 MM | 14 MM |
T Slot Centre Distance | 75mm | 80 mm |
Rapid Feed | 15000 mm/min | 15000 mm/min |
Cutting Feed | 10000 mm/min | 10000 mm/min |
Spindle Power | 2.2 Kw | 2.2 Kw |
Spindle RPM | 24000 | 24000 |
Spindle Type | Water Cooled | Water Cooled |
Tool Clamping System | ER - 20 | ER - 20 |
Max Tool Diameter | 12 | 12 |
Positioning Accuracy | 8 Micron | 8 Micron |
Position Repeatability | 5 Micron | 5 Micron |
Axis Guide System | 20 MM Precision LM Guideways | 20 MM Precision LM Guideways |
Axis Drive System | 25 mm Ground Ballscrew | 25 mm Ground Ballscrew |
Axis Motors | Absolute Servo Motor | Absolute Servo Motor |
CNC System | Delta / LNC CNC Controller | Delta CNC Controller |
Spindle Drive | Sensorless Vector Control | Sensorless Vector Control |
USB Connection | Yes | Yes |
LAN Connection | Yes | Yes |
Job Size Measurement | Yes | Yes |
Break Point Restart | Yes | Yes |
Power Cut Restart | Yes | Yes |
Feed Override | Yes | Yes |
Synchronous Interpolation | Yes | Yes |
Full Closed Loop System | Yes | Yes |
MPG Handwheel | Yes | Yes |
Work Co-Ordinate | G54 to G59 | G54 to G59 |
Square Zero Offset | Yes | Yes |
Round Zero Offset | Yes | Yes |
Maximum Job Weight | 150 Kg | 150 Kg |
Machine Weight | 850 Kg | 950 Kg |
Machine Dimensions | 650 x 800 x 1850 | 770 x 920 x 1850 |
Operating Temperature | 20 - 35 Degree Celsius | 20 - 35 Degree Celsius |
We introduce Geometry CNC Technofine as a leading company in the engineering and Machine Tools Manufacturing industry with a strong foundation in High-Speed Milling and CNC Engraving Technology. Geometry CNC is managed by a technically strong team with rich and diverse experience in Milling Technology and CNC Systems. Our workforce consists of highly qualified, efficient, and experienced professionals who have been engaged in various engineering fields since 1946. In 2010, we established an engineering unit to combine Milling Technology with CNC Systems to produce High-Speed CNC Milling Machines and High-Speed CNC Engraving Machines, offering higher productivity, accuracy, repeatability, ease of operation, stable cutting conditions, optimized tool performance, and time savings.
We have introduced our Precision CNC Machines featuring world-renowned High-Performance Mitsubishi CNC Systems with Absolute Servo Control and Fiber Optic Communication, High-Speed Delta CNC Systems and Servo, Weihong DSP Controllers, Panasonic Servo, Hiwin and PMI Precision Ground Ballscrews, LM Guideways, and MQL Micro Lubrication System for high-speed machining, increased tool life, and enhanced performance.
We have provided comprehensive CNC Engraving Machine and CNC Micro-Milling Machine solutions for a wide range of industries and applications, including:
Automobile, Forging Dies, Defense Precision Parts, Railway Precision Parts, Plastic Dies and Molds, Mobile Handset Dies, Hardware Brass and Aluminium Handles and Hinges, Aerospace Precision Parts, Sheet Metal Dies, Copper and Graphite Electrode Making, Stamping Dies, Lock Making and Keys, Machine Tools and Tool Rooms, Pattern Making, Ceramic Tiles Dies, Footwear Shoe Molds, Pumps and Valves, Jewelry and Coining Dies, FMCG/Soap Molds
Printing and Packaging Dies, Biscuit Molds, Chocolate and Confectionery Molds, Pharmaceutical Tablet Punches, Toys Making Dies, Sheet Metal Dies
Rubber Molds, Textile Parts, Watch Making Dies, Name Plates and Woodworking, Electronic and Electrical Parts and Dies, Leather Die Punches
Religious Yantras, Eyewear Plastic Frame Making, And many more...
We collaborate with numerous national and international companies, delivering high-quality products to them. We hope that you find our range of products aligning with your requirements. Our company is committed to maintaining or exceeding the standards demanded by the best companies. We believe in establishing profitable, sustainable, and enjoyable long-term relationships with our employees, customers, and suppliers. Please feel free to get in touch with us regarding any of your business-related requirements or queries. We promise to provide better solutions at competitive prices and with improved performance.
