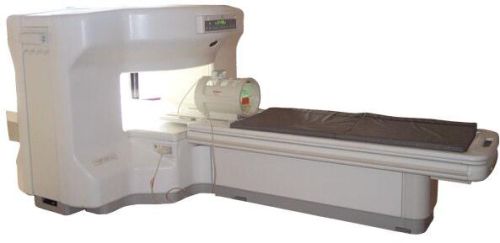

GE PROFILE OPEN MRI SCANNER

The New Signa Profile/i is a patient friendly open MRI system that virtually eliminates patient anxiety and claustrophobia, without compromising diagnostic utility.

The GE Signa Profile MRI scanner is one of the most patient-friendly MRI systems on the market, featuring a spacious design, intercom, call button, mirrored head coil and optional patient comfort module which enables additional ventilation and lighting all designed to lessen patient anxiety. The GE Signa Profile MRI scanner is also a highly flexible, fast gradient system to enable the addition of advanced techniques and applications to your routine practice.

GE MRI equipment has the largest user base in the world and is considered the preferred choice of diagnosticians for advanced problem-solving tools to assist in disease detection and diagnosis. Our wide selection of used GE MRI systems is listed below.

GE Profile Open MRI gives you the following benefits:

Accomodates large or claustrophobic patients with a wide open bore

Strong and fast gradient system at 15mt/m & SR30, providing fast scans, thin slices, and small FOV

High speed image acquisition

The GE Profile Open MRI provides you with with the following Specification:

CLINICAL APPLICATION Whole body

CONFIGURATION Open MRI

SURFACE COILS Integrated transmit body coil, body flex sizes: M, L, XL, quadrature, head coil quadrature, 4 channel neurovascular array, 8 channel CTL array, quad. c-spine, 2 channel shoulder array, extremity coil, 3 channel wrist array, 4 channel breast array, 6, 9, 11 inch general purpose loop coils

SPECTROSCOPY No

SYNCHRONIZATION Standard cardiac gating, ECG/peripheral, respiratory gating

PULSE SEQUENCES Standard: SE, IR, 2D/3D GRE and SPGR, Angiography: 2D/3D TOF, 2D/3D phase contrast;; 2D/3D FSE, 2D/3D FRFSE, FGRE and FSPGR, SSFP, FLAIR, EPI, optional: 2D/3D Fiesta, fat/water separation, T1 FLAIR

IMAGING MODES Localizer, single slice, multislice, volume, fast, POMP, multi slab, cine, slice and frequency zip, extended dynamic range, tailored RF

TR 6 to 12000 msec in increments of 1 msec

TE 1.3 to 2000 msec in increments of 1 msec

SINGLE/MULTI SLICE Simultaneous scan and reconstruction;; 80 images/second reconstruction

FOV 3cm to 40 cm continuous

SLICE THICKNESS 2D: 2.7mm – 20mm 3D: 0.2mm – 5mm

DISPLAY MATRIX 1280 x 1024
