Gear Cutting Machine

We are a professional gear hobbing machine factory ( built in 1995) that can fabricate, design and develop gear hobbing machines ( or gear-manufacturing machine).

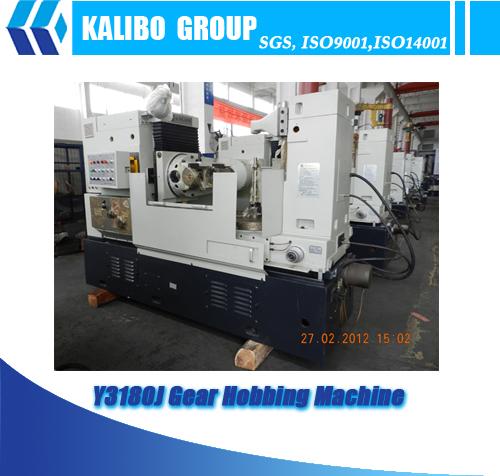

Model: Y3180J Gear Hobbing Machine
Product features:
1 The machine produces columnar gear, straight tooth, skew tooth, cylindrical gear and short splined spindle of more than eight teeth with high and stable work accuracy.
2 Capable of axial feed in clockwise or anti-clockwise milling..
3 The machine is controlled by both hydraulic pressure and electricity which adopts the PLC which is programmable. This leads to high security, low rate of malfunction and also is convenient to maintain.
4 Equipped with safe device and automatic lubrication system, and automatic turn-off..
5 The machine is simply and convenient adjusted and suitable for large number production as well as several pieces being operated by one person.
6 The Quality Dept. conducts pre-delivery/type inspections for final products as the Acceptance conditions for Gear Hobbing machines-Testing of the Accuracy, GB/T8064-1998 of product standards and inspection specifications
7 The finish machining will reach the level 7 in accordance with the Accuracy of Involute Cylindrical Gears, GB/T10095-2001
8 Painting, packing and transportation of the product shall be in conformity with the provisions of JB2536, or follow your requirement..
Main technical specifications:
Max. diameter of work-piece: 800mm
Max. modulus : 10mm
Max. Speed of worktable: 5.2 r/min
Speed of spindle: 40-200mm/r
Spindle range of feeds: 0.4-4mm/min
Distance between tool centre and worktable axis: 50-550mm
Distance between tool center and worktable: 235-585mm
Distance between outer bracket and worktable: 390-790mm
Max. swiveling angle of hob rest: ±60°
Max. Size of Hob D*L: 180x 180 mm
Worktable size: diameter X bore diameter : Φ650×Φ80 mm
Hob shifting distance: 55mm
Main motor power: 5.5kw
Total motor power: 8.5kw
Overall dimension (L×W×H): 280cm ×155cm×192cm
Packing case dimension (L×W×H): 300cm ×205cm×240cm
Net weight/gross weight: 6000kg/7000kg
Remarks：
1 Standard equipment: main machine, each one set of Φ27, Φ32 andΦ40 hob shank, one set of standard change gear, one set of special tools.
2 There will be no further notifying of product improvement. Variant machine or special machine can be provided if required by user.
Warmly welcome to contact us to get details!
