Gear hobbing machine

We are a professional OEM factory (built in 1995) that can fabricate, design and develop the chains, gear hobbing machines (gear manufacturing machines), sprockets and the attachments. The product can be ordered in accordance with the customers' requirement and the relevant GB/T, ISO, BS, DIN, ASME or JIS Standards. We have own excellent teams including these technical staff, process engineers, QC engineers and designers etc.

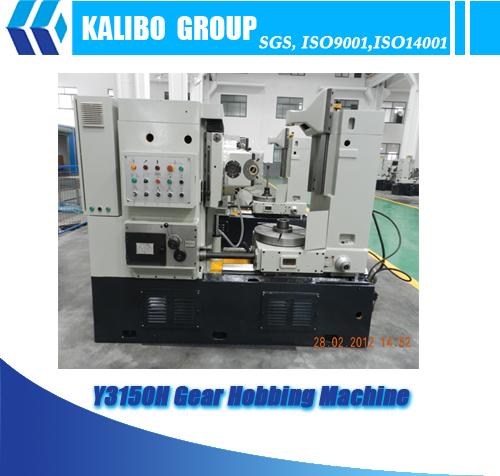

Y3150H Gear Hobbing Machine
Product features:
1 The machine produce columnar gear both straight tooth, skew tooth, cylindrical gear and short splined spindle of more than six teeth with high and stable work accuracy.
2 Capable of axial feed in clockwise or anti-clockwise milling..
3 The machine is controlled by both hydraulic pressure and electricity which adopts the PLC which is programmable. This leads to high security, low rate of malfunction and also is convenient to maintain.
4 Equipped with safe device and automatic lubrication system, and automatic turn-off..
5 The machine is simply and convenient adjusted and suitable for large number production as well as several pieces being operated by one person.
6 The Quality Dept. conducts pre-delivery/type inspections for final products as the Acceptance conditions for Gear Hobbing machines-Testing of the Accuracy, GB/T8064-1998 of product standards and inspection specifications
7 The finish machining will reach the level 7 in accordance with the Accuracy of Involute Cylindrical Gears, GB/T10095-2001
8 Painting, packing and transportation of the product shall be in conformity with the provisions of JB2536, or follow your requirement..
Main technical specifications:
Max. diameter of work-piece: 500mm
Max. modulus : 8mm
Max. Speed of worktable: 7.8 r/min
Speed of spindle: 40-250mm/r
Spindle range of feeds: 0.4-4mm/min
Distance between tool centre and worktable axis: 30-330mm
Distance between tool center and worktable: 235-535mm
Distance between outer bracket and worktable: 400-630mm
Max. swiveling angle of hob rest: -/+60 degree
Max. Size of Hob D*L: 160 x 160 mm
Hob shifting distance: 55mm
Main motor power: 4kw
Total motor power: 6.45kw
Overall dimension (L x W x H): 244cm x 136cm x 180cm
Packing case dimension (L x W x H): 263cm x 165cm x 222cm
Net weight/gross weight: 4500kg/5500kg
Remarks:
1 Standard equipment: main machine, each one set of Φ22, Φ27 andΦ32 hob shank, one set of standard change gear, one set of special tools.
2 There will be no further notifying of product improvement. Variant machine or special machine can be provided if required by user.
