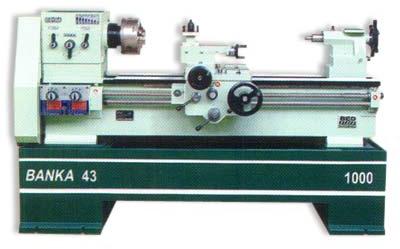

Gear Lathe Machine

Supply TypeExporter, Supplier, Retailer
Preferred Buyer Location All over the world

Sturdily designed, our Gear Lathe Machine are known to render high efficiency and rigidity in operation. Configured precisely to display exact results, our Gear Head Lathe Machine is fabricated using high grade metals and thus it has an anti-corrosive and rust proof body. Exuding excellent operation, we also deliver our Gear lathe Machines as per the technical specifications provided by our customers. This has helped us in positioning us among the reputed Precision Gear Lathe Machine Suppliers in India.

View More Details

Send Enquiry

<b>Techincal Details</b>

Particular	Banka 43	Banka 35	Banka 34
Height of Centers	215	175	170
Swing over bed	430	350	340
Swing over Slide	270	190	180
Width of Bed	305	242	240
Spindle bore	50	40	40
Spindle Nose	LO-Type	LOO-Type	LOO-Type
Spindle Speed No.	16 H-L	16 H-L	16 H-L
RPM	40-1415	48-1535	60-1025
Cross slide Travel	240	180	175
Top slide Travel	130	125	125
Tail stock sleeve	MT-3	MT-3	MT-3
Quill Dia. /Travel	75/150	50/125	50/125
Tool Shank Section	20 x 20 mm	20 x 20 mm	20 x 20 mm
Feeds Longitudinal	60/0.08-1	60/0.08-1	60/0.08-1
Feeds Transverse	60/0.02-0.25	60/0.02-0.25	60/0.02-0.25
Metric Thread	40/0.4-7mm	40/0.4-7mm	40/0.4-7mm
Thread Per Inch	45-70-4 TPI	45-70-4 TPI	45-70-4 TPI
Lead Screw	4 TPI	4 TPI	4 TPI
Main Motor	2.25 kw	1.5 kw	1.5 kw
Admit Between Center	1000/1500/2500	750/1000	600
Bad Length Feet	6' / 8' / 11'	5' / 6'	4.5'
Weight (Kg.) Approx.	1000/1200/1500	750/850	550
Free Accessories : Diving Plate, Center Adaptor, Dead Center-2, Thread Dial Indicator, Square Tool Post, Change Gears, Motor Stand, V- Belt Pulley, Allan Key Set, Spanner Set, Chip Collector Try, Vibration Pads, Foundation Bolt, First Fill Oil & Manual.
