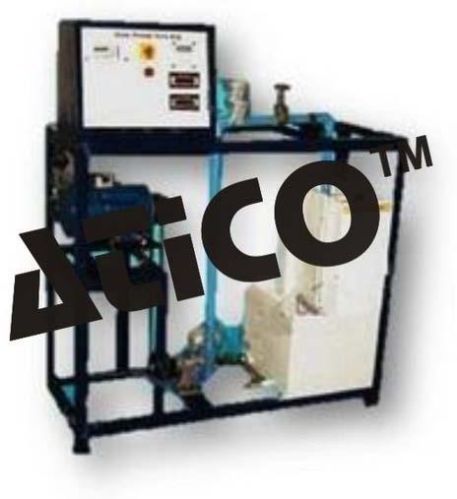

Gear Pump Test Rig

We are offering gear pump test rig.
Features:
closed loop circulation
compact & stand alone set up
superb painted structure
simple to operate & maintain
the setup is designed to study the performance of gear pump.
Set up consists of a gear pump having a pair of meshed gears coupled with electrical motor, supply tank, measuring tank & pipe fittings for closed loop oil circulation. Pressure and vacuum gauges are connected on delivery and suction side of pump for the purpose of measurement.
Utilities required:
electric supply provide 230 +- 10 vac, 50 hz, single phase electric supply with proper earthing. (neutral earth voltage less than 5 vac.) 5a, three pin socket with switch for pump.
Oil supply oil @ 30 liters
technical details:
product gear pump test rig gear pump test rig
product code hml-02 acdc
pump gear pump with pair of meshed gears, capacity 1 hp , speed 1500 rpm (max.), head 5 kgcm2 (max.)
drive ac : ac motor with step cone pulley arrangement for 3 prefixed speed
dc : dc motor with dc drive along with non-contact type digital rpm indicator
supply tank capacity 30 ltrs. Moc ss
measuring tank capacity 20 ltrs. Moc ss fitted with piezometer tube & scale
piping gi pvc
