Gear Shaft

Shaft Parts:
1.Supply for different part
2.According to drawing or samples
3.Material: steel
4.Surface:treatment
5.Type:metal
1) Material: Alloy steel, Carbon steel, etc.
2) Standard: ASTM, EN, DIN, JIS, GB, etc.
3) Low price and best service.
Our product line adopt standard with ASME, DIN, GB, EN, etc. The material contain various kinds of high quality carbon steel, alloy steel, tool steel, bearing steel, etc.
We adopt the advanced production process that contains "high-power electric furnace+ladle furnace(LF)+vacuum degassing(VD)+electroslag remelting+fast forging+annealing( normalizing)+heat-treatment+machining".
Main specification as follows:
Item name
Size(mm)
Material
Remark

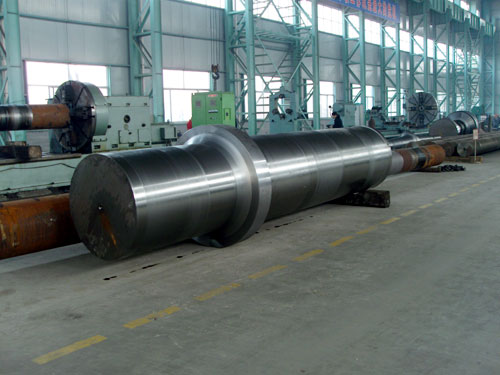

shafts
diameter≤1200
length≤10000
as clients' request
various stepped shaft, transmission shaft, screw rod
hot forging modules
80-1000
as clients' request
various modules
Pipe series
diameter≤1200
length≤10000
as clients' request
various thick wall hollow pipes, high pressure boiler pipes
Performance:
Grain Size: ASTM E-112 5-8 rank.
Forging ratio: ≥3
Ultrasonic flaw detecting: SEP1921-84 C/C
Machining technology parameters:
Size(OD mm)
Surface roughness
Precision(mm)
Coaxial tolerance(mm)
φ100~φ1500
