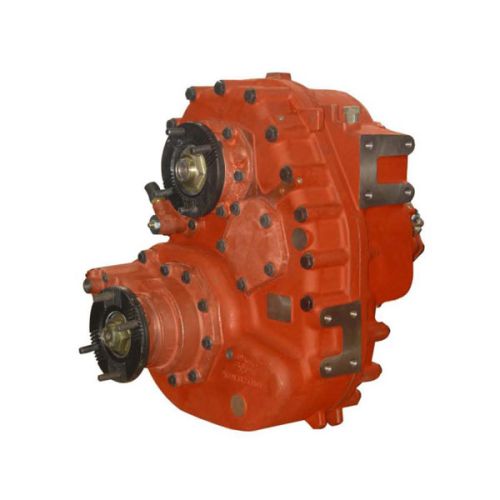

Gearbox

There are many other models can be provided. If you were interested, please contact with us.
The technical datas of zqc1600 are listed in below:
1.max input torque:18000nm 　
2.max.input speeddirection ::2800rpmclockwise 　
3.center distance: 300mm 　
4.ratio series :on-road 0.89 off-road 1.536 　
5. Shifting operation type position :　
3-pneumatic backword 　
3-mechanic backword or forward 　
6. Front axle output operation (or differential lock operation): pneu.operation with indication swith 　
7.torque ratio proportion 1：2.2141:2.696
(differential is optional)
8. Air pressure: 6.5~8 bar 　
9.total weights:350kg 340kg 　
10. Optional unit n200 p.t.o or connecting device for zf8605 oil pump is optional
the transfer case can be modified as per customer's requirements.
