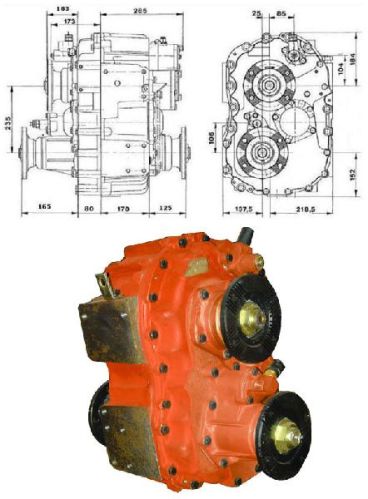

Gearbox ZQC1200 For 4X4 4X6 Wheeled Vehicles

There are many other models can be provided. If you were interested, please contact with us. The technical datas of zqc1200 are listed in below chart. 1. Max input torque: 12000nm 2. Max.input speed and direction:3000rpm and clockwise 3. Center distance:235mm 4. Ratio: 1.00:1.75 and 1.00:1.285 5. Shifting operation:3-pneumatic and 3-mechanic 6. Torque ratio proportion: 1:2.39 (differential is optional) 7. Air pressure :6.5~8 bar 8. Optional unit:n200,n400 or full power p.t.o are optional the transfer case can be modified as per customer's requirements.
