Contact Supplier| Model | 1 | 2 | 3 | 5 |
|---|---|---|---|---|
| Rated loaed (T) | 1 | 2 | 3 | 5 |
| Test load (T) | 1.5 | 3 | 4.5 | 7.5 |
| Chain pull to lift full load (n) | 80 | 140 | 150 | 170 |

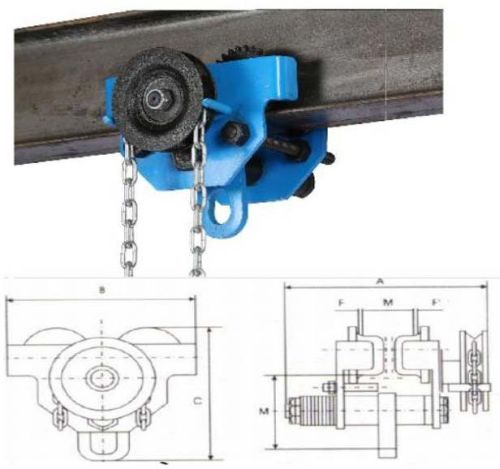

| Dimensions | -- | -- | -- | -- |
| A | 280 | 318 | 340 | 365 |
| B | 236 | 273 | 320 | 366 |
| C | 211 | 236 | 295 | 334 |
| H | 115 | 130 | 164 | 177 |
| I-Beam recommended | 75-150 | 90-176 | 100-200 | 150-300 |
| Net weight (kg) | 14 | 16 | 24 | 36 |
| Model | 1 | 2 | 3 | 5 |
|---|---|---|---|---|
| Rated load (T) | 1 | 2 | 3 | 5 |
| Test Load (T) | 1.5 | 3 | 4.5 | 7.5 |
| Dimensions mm | -- | -- | -- | -- |
| A | 242 | 280 | 300 | 316 |
| B | 236 | 273 | 320 | 366 |
| C | 211 | 236 | 295 | 334 |
| H | 115 | 130 | 164 | 177 |
| I-Beam recommended | 75-150 | 90-176 | 100-200 | 150-300 |
| Net Weight (kg) | 8.7 | 10.4 | 24 | 36 |
