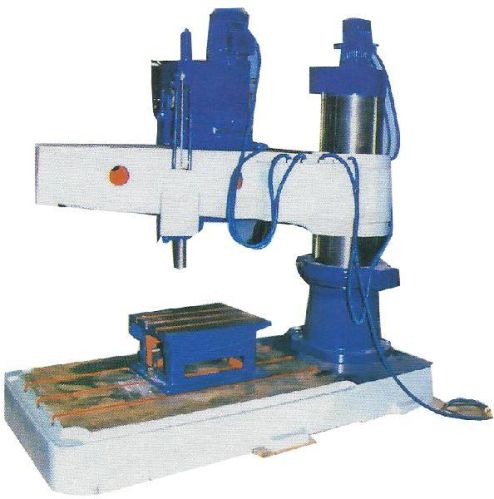

Geared Radial Drilling Machine

Listing ID #3910391

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

ase : The Base is a one piece casting of heavy proportion and rigidly crossribbed on the underside to prevent any bowing effects under heavy loads. A reservoir for coolent is cast integrated....

View More Details

Send Enquiry

Product Details

ase :

The Base is a one piece casting of heavy proportion and rigidly crossribbed on the underside to prevent any bowing effects under heavy loads. A reservoir for coolent is cast integrated with base.The "Tee" slots on the surface are machined and the surface is handscrapped.

Columm :

It is of a high Brinell Hardness number suitable for it's purpose. As there are no rotating joints there init is quite rigid.

Arm :

Automatic vertical movement of arm is provided with the direct coupled flange motor on the bracket, the lead screw will not rotate even while automatic movement will be in operation.Arm is adjustable to any angular position

Drill Head :

Drill Head is a mounted on The electric motor is directly mounted on drill head.Eight different speeds from 90 to 860 rpm.are obtained by changing levers.Automatic feed mechanism is provided for vertical traverse of Quill.

Spindle :

The Toughned spindle is made of high grade alloy steel is carried in pre loaded tapper roller bearings to absorb reverse trust and radial loads produced by drilling and boring. The spindle rotates and slides in a ball bearings
The machine is supplied with two Electric Motors.Coolent pump, pipe fittings,Table Etc. Electricals are Suitable for 440 volts, 50 Cycles, 3Phase.A.C.Supply.

Drilling capacity in cast - iron	75
Drilling capacity in Mild steel	70
Quill Movement (Available in 225 mm)	375
Maximum Center distance between column & Spindle	1500
Minimum Center distance between column & Spindle	400
Maximum Distance between Spindle & Base	910
Manimum Distance between Spindle & Base	420
Working Surface of base L x W	1570 x915
Working surface of table	650 x 450 x 300
Vertical traverse of Arm	1000
Column Diameter	350
Number of spindle speeds	8
Range of spindle Speeds	90-140-160-255-300-470-540-860
Number of spindle feeds (0.1 & 0.015 mm)	3
Taper in spindle	Morse taper No.5
Center distance between foundation bolts	1035 x 705
Electric motor on Drill head	2 HP / 1440 rmp
Electricac motor on Arm elevating	5.H.FI 14 / .1 RPM
Dimension of base plate	1990 x 1078
Total height	3030
Approximate weight of machine	3000 kgs.
