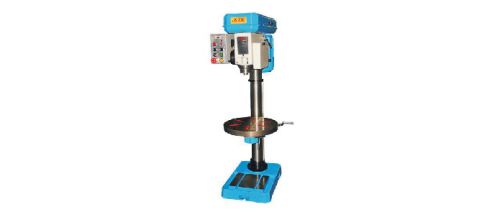

Geared Standard Tapping Machines

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Tapping cycle (Tap forward - dwell - Tap reverse to home) Spindle drive through stepped pulley. TEFC motors with F class insulation. Automatic tapping is driven by gear pair which provides standard....

View More Details

Send Enquiry

Company Information

KTK Machines India Pvt Ltd

Shivane, Pune, Maharashtra

View Number

Member Since 9 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Tapping cycle (Tap forward - dwell - Tap reverse to home)
Spindle drive through stepped pulley.
TEFC motors with F class insulation.
Automatic tapping is driven by gear pair which provides standard pitch, accurate threads and consistent quality of tapping.
Easy replacement of gear pair for different pitches, fitted externally.
Inbuilt Safety clutch mechanism to prevent breakage in case of spindle overload.
Machines also available in fabricated stand model.
Machines can be equipped with multi spindle heads for mass production.
- Operation and maintenance manual.
- V Belts
- Intermediate Table with Rack & Pinion arrangement for lifting and lowering of Work Table.
- Spindle motor of reputed brand, TEFC, F class insulation, 3 Phase, 50 Hz, 6 Pole Induction Motor with all drive elements.
- Comprehensive electrical control panel without motor protection device.
Optional Accessories
- Tool holders suitable for application.
- Coolant system consisting of reservoir tank with chip collection tray, separation baffles, coolant pump with 3 phases AC Induction motor, flexible piping & fittings, on/off valves, splash guards or chip collection tray etc.
- Machine lamp arrangement.
- Square work table.
- Jigs & Fixtures.

Model	GT25	GT12
Max. Tapping Capacity (S45C)	M16	M10
Spindle Taper	MT3	MT2
Spindle Travel	120mm	80mm
Spindle Speed	255-2060 rpm	470-1730 rpm
Column Diameter	Ø 102mm	Ø 80mm
Table Diameter	420mm	320mm
Base Size	410*600mm	300*500mm
Max Dist. Spindle To Table	630mm	400mm
Max Dist. Spindle to base	930mm	620mm
Motor HP	2HP	1HP
Overall Height	1600mm	1050mm
Weight	220kgs	100kgs
