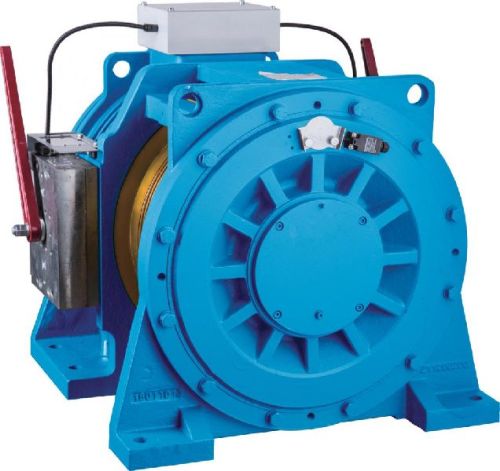

Gearless Double Wrap Elevator Traction Machine

Detailed Product Description Traction ratio: 1:1,2:1 Rated capacity: 1050,1200,1350,1600, 2000kg Rated elevator speed: 3,3.5,4ms Max. lifting height: 200m Max. shaft load: 15000kg Applicable converter: 3 phase 400V Double Wrap Elevator Traction Machine ,Traction Ratio 1:1 , 2:1 WTYF328 Product Description This series of permanent-magnet synchronous gearless traction machines adapts double wrap, and the housing and support structure are integrated structure. So it has compact construction, with easy installation and maintenance, it's can bear high radial loads. Unique external rotor design is provided, low-noise block brake is mounted on both sides of the housing and operates with high sensitivity, high efficiency and good stability. Product Characteristics Traction ratio: 1:1,2:1 Rated capacity: 1050,1200,1350,1600, 2000kg Rated elevator speed: 3,3.5,4ms Max. lifting height: 200m Max. shaft load: 15000kg Applicable converter: 3 phase 400V Brake voltage: DC200V for Brake opening, and DC100V for brake holding Number of motor poles: 20 poles
