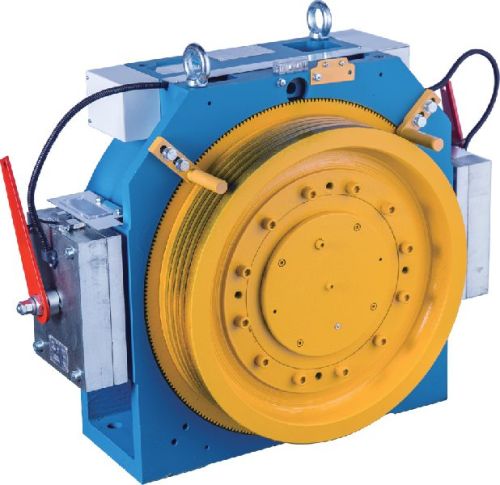

Gearless Elevator Traction Machine

Detailed Product Description Traction ratio: 2:1 Rated capacity: 800,1000kg Rated elevator speed: 0.63,1,1.6,1.75,2.0ms Max. shaft load: 3000kg Applicable converter: 3 phase 400V Brake voltage: DC200V for Brake opening, and DC100V for brake holding Number of motor poles: 20 poles Pitch diameter: Ø480 Gearless Traction Machine Motor With Block Brake , MINI-4, 2:1 Ratio Product Description This series of gearless traction machines has unique external rotor construction so that the forces are applied to the machine reasonably. Excellent magnetic field design allows the machine to operate steadily with low noises and temperature rise. It is provided with block brake, which has high braking torque and low closing noises. Traction sheave is available in two pitch diameters 410mm and 480mm, and the encoders can be installed in various manners to meet different demands of customers. The product is provided with manual brake release device and remote brake release device, and can be used in small machine room elevators and non-machine room elevators. Product Characteristics Traction ratio: 2:1 Rated capacity: 800,1000kg Rated elevator speed: 0.63,1,1.6,1.75,2.0ms Max. shaft load: 3000kg Applicable converter: 3 phase 400V Brake voltage: DC200V for Brake opening, and DC100V for brake holding Number of motor poles: 20 poles
