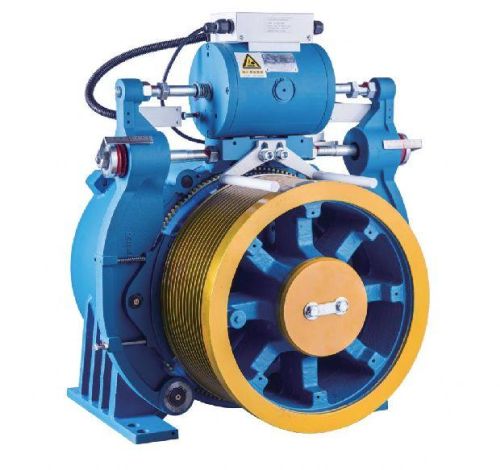

Gearless Traction Machine-WYJ250

Quick DetailsType: ElevatorsPlace of Origin: Zhejiang, China (Mainland)Brand Name: XINDAModel Number: WYJ250SUsage: Car ElevatorsDrive Type: ACElevator Type: Passenger ElevatorsTraction ratio: 2:1Rated capacity: 630,800,1000,1250,1350,1600kgRated elevator speed: 1,1.6,1.75,2.0msMax. lifting height: 80mMax. shaft load: 5000kgApplicable converter: 3 phase 400VBrake voltage: DC200V for Brake opening, and DC100V for brake holdingNumber of motor poles: 20 polesPackaging & DeliveryDelivery Detail: 60 days after TT in advanceSingle Wrap Gearless Traction Machine For Elevator Lift, WYJ250SProduct DescriptionWYJ250 series of permanent-magnet synchronous gearless traction machines are directly driven by a low-speed, high-torque, 3-phase permanent magnet synchronous motor, and has the advantages of low energy consumption, low noises, no pollution, and little maintenance.These traction machines can be installed on the top of shaft way and the pit, with upward traction or downward traction, and have handwinding function.This series of permanent-magnet synchronous gearless traction machines includes single wrap type and double wrap type, and roping factor is 2:1 for both types.Product CharacteristicsTraction ratio: 2:1Rated capacity: 630,800,1000,1250,1350,1600kgRated elevator speed: 1,1.6,1.75,2.0msMax. lifting height: 80mMax. shaft load: 5000kgApplicable converter: 3 phase 400VBrake voltage: DC200V for Brake opening, and DC100V for brake holdingNumber of motor poles: 20 poles
