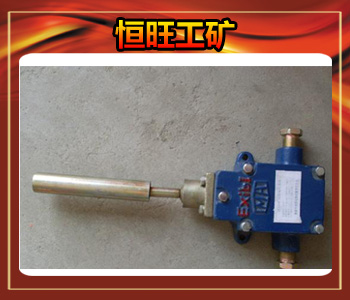

Gej30 Wandering Sensor

We are offering gej30 wandering sensor.
Running deviation sensor itself is not easy to damage; feeler lever is equipped with rolling sheath, avoid friction between sheath material and adhesive tape.
Tape during normal operation, running deviation switch feeler lever in the vertical position. When belt running deviation, switch the sheath material of the tape met wandering and feeler lever shaft rotates, when sheath material of deflection angle, wandering switches within the travel switch, signal running deviation.
Technical parameters
explosion-proof type: mine intrinsically safe, the products comply with the provisions of the gb3836.4 in simple equipment.
Explosion-proof marks: exib ⅰ
dimensions: 380 mm * 170 mm * 72 mm
weight: 3 kg
action point: 30 o + 3 o
feeler lever action force: 20 n to 100 n
reset the angle: 20 o + 3 o
sheath material of the limit of rotation angle: 70 o or more
running deviation sensor movement series: single stage
contact capacity: 24 vdc 0.5 a.
