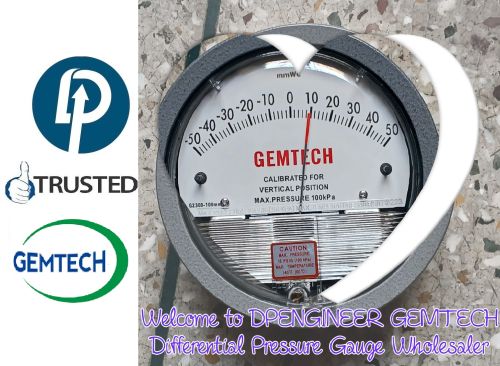

Aluminium Gemtech Analog Differential Pressure Gauges, Color : Black

₹ 4,500 - ₹ 5,000 / piece

MOQ50 Piece
MaterialAluminium
Brand NameGEMTECH
Display TypeAnalog
ShapeRound
Supply TypeManufacturer, Supplier, Retailer, Distributor, Importer, Trader, Buying House
Preferred Buyer Location All over the world

Company Information

5.0/5

Member Since 8 Years
Nature of Business Manufacturer
GST No. 07APKPS1463E1ZT

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameGEMTECH
Display TypeAnalog
UsageMeasuring Gas, Liquid Pressure
ShapeRound
MaterialAluminium
Pressure Range GaugeMM WC/ CM / PAC / KPA / INCH
Size4 inch / 100 mm

Gemtech Differential Pressure Gauges Stock Available in Mumbai
Series G2000 GEMTECH Differential Pressure Gauges are Widely Utilized For Measuring Pressure of Fan And Blowing Machine, resistance of Filter, Wind Speed, Furnace Pressure, Differential Pressure Of Pore Plate,The Pressure of drum water level, Liquid Amplifier And Hydraulic Pressure System. Meantime,They Are Used To Control The Automatic Valve And Specific Value Of Air-Producer Gas In Combustion And They Are Used To Test Blood Pressure And Respiratory Pressure In Medical Health Care Equipment. There Are More Than 81 Models To Suit Your Needs Precisely.The Key Components Adopt Import Materials.
SPECIFICATION

Ambient Temperature - -21 ~140 -6 ~60

Rated Pressure -20 inHg~30 inHg (-68~103KPa)

Overpressure - Protective rubber stopper will be blown out if rated pressure is up to about 50.8 inHg (172KPa)

Process Connections - 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back

Housing - Die cast aluminum case and bezel, with acrylic cover, Exterior finish is coated gray to withstand 168 Hour Salt Spray Corrosion Test

Accuracy - ±2% of full span at 70 (21 (±3% on -0, and ±4% on -00)

Range -20 inHg~38 inHg (-68KPa~130KPa)(Special Specification also can be ordered.)

FEATURES

OEM/ODM
There Is No Need To Fill Liquid To Gauge.
The Gauge Can Measure Positive Pressure,Negative Pressure And Differential Pressure.
It Will Be Easy To Install And Measure In Different Ways Because Of Two Groups Of Ports Which Can Measure Positive And Negative Pressure.
To Eliminate The Friction From The Movement Of Gear Wheel By The Mechanism Of Magnetic Magnet Feed.
Exact And Stable Fixed Position Of Needle.
The Gauge Has Great Antiknock Characteristics.
There Are 81 Types Of Ranges.Minimum is 0-60 Pa And Maximum is 0-21-KPa

PRODUCT APPLICATIONS

Filter Monitoring
Air Velocity With Pitot Tube
Blower Vacuum Monitoring
Fan Pressure Indication
Duct,Room or Building Pressures
Clean Room Positive Pressure Indication

MODELS & ORDERING

GEMTECH By Model Number Popularity

FILTER BY
Range - MM Of Water

ModelDescription

G2000-100MM	DPG,Range 0-100 MM W.C., Minor Divisions 2.0.
G2000-10MM	DPG,Range 0-10 MM W.C.,Minor Divisions .20,Calibrated For Vertical Scale Position.
G2000-150MM	DPG,Range 0-150 MM W.C.
G2000-15MM	DPG,Range 0-15 MM W.C.
G2000-200MM	DPG,Range 0-200 MM W.C.
G2000-250MM	DPG,Range 0-250 MM W.C.
G2000-25MM	DPG,Range 0-25 MM W.C. Minor Divisions .50.
G2000-300MM	DPG,Range 0-300 MM W.C.
G2000-50MM	DPG,Range 0-50 MM W.C., Minor Divisions 1.0.
G2000-6MM	DPG,Range 0-6 MM W.C., Minor Divisions .20, Calibrated For Vertical Scale Position.
G2000-80MM	DPG,Range 0-80 MM W.C., Minor Divisions 2.0.
