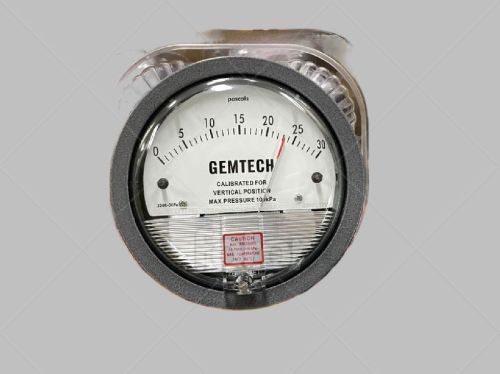

GEMTECH Minihelic Differential Pressure Gauge Range 0-25 MM

₹ 4,500 / RS

MOQ24 Piece
MaterialDie Cast Aluminum Case And Bezel, With Acrylic Cover, Exterior Finish Is Coated Gray To Withstand 16
Dial Size63 MM
ConnectionFor 3/16
Brand NameGEMTECH
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Importer, Trader, Buying House
Preferred Buyer Location All over the world

Company Information

4.4/5

Member Since 15 Years
Nature of Business Supplier
GST No. 07AOSPS8386M1ZM

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Measuring RangeMM WC/ CM / PAC / KPA / INCH
Country of OriginIndia
Number Of FlowerGauges, Minihelic Differential Pressure Gauge
Brand NameGEMTECH
MaterialDie Cast Aluminum Case And Bezel, With Acrylic Cover, Exterior Finish Is Coated Gray To Withstand 16
ShapeRound
CertificationYAS
Display TypeAnalog
Total Carbohydrate1 Year
UsagePharmaceutical Industries
Dial Size63 MM
ConnectionFor 3/16
Thread Connection1/8 Inch
Pressure RangeMM WC/ CM / PAC / KPA / INCH
Scale RangeMM WC/ CM / PAC / KPA / INCH

GEMTECH Minihelic Differential Pressure Gauge Range 0-25 MM

GEMTECH Minihelic Differential Pressure Gauge

Combining High Accuracy, Compactness, Dependability, And Low Cost Combining Clean Design, Small Size And Low Cost With Enough Accuracy For All But The Most Demanding Applications Our Nextech Minihelic Differential Pressure Gauge Offers The Latest In Design Features For a Dial Type Differential Pressure Gage. It Is Our Most Compact Gage But Is Easy To Read And Can Safely Operate At Total Pressures Up To 30 PSIG.

NIST CALIBRATION Available In Product Configurator.

PRODUCT APPLICATIONS

Room Positive Pressure Sensing
Local Indication on Filter Status
Face Velocity on Fume Hood
Duct Pressures
Cabinet Air-Purging
Air Samplers
Electronic Air Cooling Systems
Laminar Flow Hoods

SPECIFICATIONS

Service:Air And Compatible Gases.
Wetted Materials:Consult factory.
Housing:Glass Filled Nylon; Polycarbonate Lens.
Accuracy:±5% of FS at 70°F (21.1°C).
Pressure Limits:30 psig (2.067 bar) Continuous To Either Pressure Connection.
Temperature Limits:20 to 120°F (-6.67 to 48.9°C).
Mounting Orientation:Diaphragm In Vertical Position. Consult Factory For Other Position Orientations.
Process Connections:Barbed, for 3/16" ID Tubing (Standard); 1/8" Male NPT (optional).
Weight:6 oz (170.1g).
Agency Approvals:Meets The Technical Requirements Of EU Directive 2011/65/EU (RoHS II).CAUTION: FOR USE ONLY WITH AIR OR COMPATIBLE NON-CORROSIVE GASES.

FEATURES

Removable Lens And Rear-Housing Provides Easy, Cost-Effective Servicing
Accuracy And Value Provides An Excellent Solution For OEM And User Applications
Durable Housing Materials Make It Well-Suited For Rough Environments And Total High Pressure
