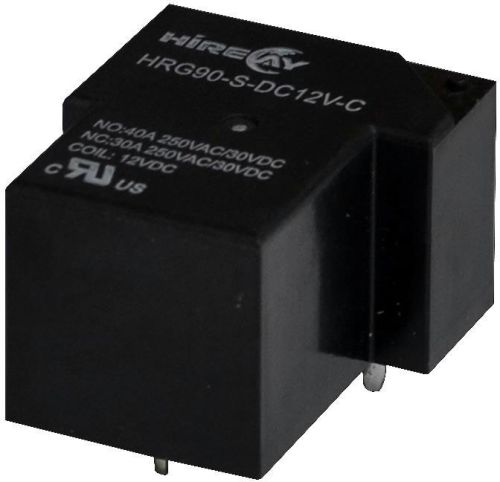

General Purpose Relay T90,T91,Dc12v ,T Type Relay

we offer general purpose relay t90,t91,dc12v ,t type relay. contact ratings contact form 1a 1b 1c 触点材料 contact material agcdo contact resistance 50mω (1a 6vdc) 触点负载(阻性） contact load（resistive load) 1a:40a 250vac30vdc 1c:30a 250vac30vdc 最大切换电压 max.switching voltage 277vac30vdc 最大额定切换电流(阻性） max.rated switching current（resistive load) 40a(1a 1b) 30a(1c) 最大切换功率 max.switching power 7200va600w 机械耐久性min mechanical endurance min 1×107ops 电耐久性 min electrical endurance
