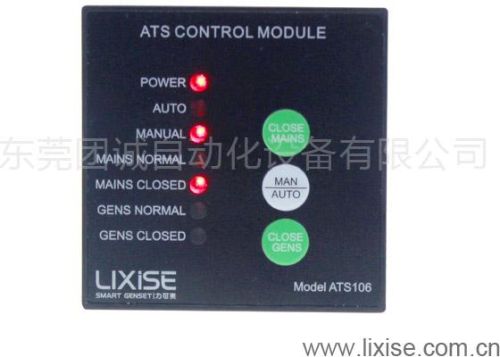

Generator Dual Power Transfer Controller

we are offering generator dual power transfer controller.
product description:
ats106 dual power transfer controller for mains generator automatic switching control module, a microprocessor core, can accurately detect two single-phase voltage of the voltage appearing abnormalities (loss of power, overvoltage, undervoltage, over under frequency) to make accurate judgments, after the delay control ats switching. the controller has issued a starter mains signal generators feature abnormal delay.
product performance and features:
    1, all the way to adapt to the way electricity generation ats control
    2, w (8-35) power supply range vdc, able to adapt to different starting battery voltage generators environment.
    3, or power mains voltage threshold can be set, the normal time delay can be set, generator set start delay can be set.
    4, the mains voltage is abnormal delay can be set, generators stop delay can be set.
    5, 7 on the front panel led display operation and alarm status.
    6, the switching relay contact capacity 16a 250vac, can directly drive the switching.
    7, generator power relay (gnes start) output contact capacity 5a 250vac, passive contacts.
    8, usb programming interface, work for all kinds of delay, power threshold can be set via a pc.
specifications:
  dc power: 8 ~ 35v
  ac sampling input: single phase ac10 ~ 400v, 5060hz
  ats switching output: 5a250vac passive relay contacts
  turbine power output: 5a250vac passive relay contacts
  2 closing state input: connected b-
  power consumption: standby (12v: 0.2w, 24v: 0.3w), work (12v: 0.9w, 24v: 1.0w)
  working environment: temperature: -30 ~ +70 ℃ humidity: 20 ~ 95%
  dimensions: 72 × 72 × 38mm
  hole size: 67 × 67mm
  weight: 0.15kg
