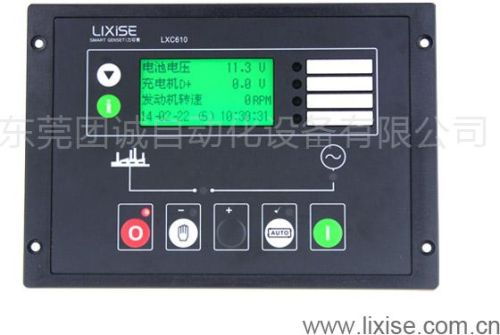

Generator Start Controller

we are offering generator start controller.
product description:
lxc610 series controller uses 32-bit microprocessor and embedded system control technology, precision measuring 16 parameters, 32 programmable inputs, 35 warning protection parameters, 85 programmable output of 121 configurable parameters. of which 108 can be configured from the front panel. with lcd graphic display module can display various engine parameters and generator parameters. was quickly promote the use in multiple areas, such as: small power plants, biogas power generation, oil and power, field engineering, factory, fire pumps, mobile base stations, and many other fields. applies to gasoline, diesel, natural gas, biogas and other power equipment, many well-known domestic and foreign enterprises have been widely supporting applications. completely replaced dse7x0 controller.

product performance and features:
     1, the liquid crystal display lcd is 132 × 64, in four languages ​​(chinese, english, spanish, russian) display, touch button operation;
     2, suitable for three-phase four-wire, single-phase two-wire, three-phase three-wire, two-phase three-wire (120v240v) 50hz60hz power systems;
     3, collect and display mains generator phase voltage, phase current, frequency, power parameters;
     4, mains overvoltage, undervoltage, phase function, power generation has overvoltage, undervoltage, over and under frequency, overcurrent function;
     5, various parameters sophisticated collection engine: coolant temperature, oil pressure, fuel quantity, charger voltage and effective protection based on the settings of the engine, to avoid accidental damage to the engine;
     6, control and protection functions: automatic diesel generator start stop, sub-gate (ats switch) and perfect fault protection functions;
     7, with ets, idle speed control, preheat control, lifting speed control function, and are relay outputs;
