Generators

Motor- Generator Designs
AC Permanent Magnet Motor:
When running as a motor, with a special inverter, it can realize zero-speed torque, low-speed constant torque output and high-speed constant power output. The motor has no slip difference, with high efficiency and high control precision. The motor can leave out the position sensor (encoder), improving the system reliability.
Do not need the excitation when work as a generator. The generator voltage is in direct ratio to the speed, with high efficiency and good feedback load effect.
Fast dynamic response.
The rated speed: 0-15000RPM adjustable, or can be customized according to the requirements of users. The speed can be regulated sleeplessly, positive & reverse control, continuous operation.
Insulation class: class H, vacuum pressure leaching lacquer, suitable for variable frequency speed regulation, low temperature and long service life.
For the large-torque load can provide 10000Nm low-speed electric motor, can provide 42-pole motors.
Motor can be made according to the requirements of customers, equipped with cooling fan, or water cooling structure. The motor can be made into spine shaft and dual shaft or other special structures. The motor can be made as dual voltage , dual power.

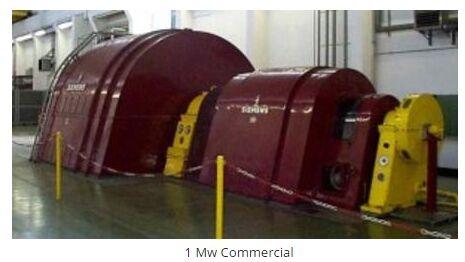

1Mw Generator Example:
*500rpm , 690VAC, 3-phase, Y500, 5800 lb. Price at $90,000 USDA​​
