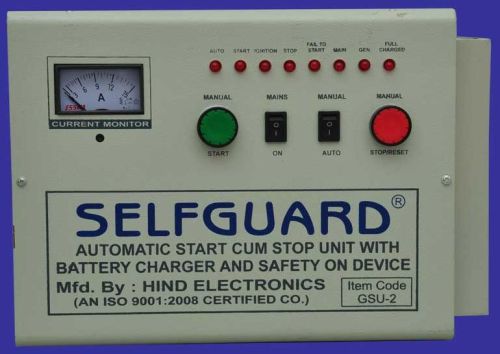

Model No. GSU-2BC-12 Generator Control Unit

We offer Generator Control Unit Model No. GSU-2BC-12, generator start cum stop unit with battery charger. The Microcontroller/microprocessor based stop unit with battery charger is especially designed using latest techniques to ensure high performance. GSU-2 is suitable for the all types of generators. Note : Housed in 325mm * 230mm * 110mm sheet metal powdered coated rust free body color. Indications :

• Auto
• Start
• Ignition
• Stop
• Fail to Start
• Main
• Generator
• Full Charged

Buttons :

• Manual Start Push.
• Mains On Switch
• Auto/Manual Selection Switch
• Manual Stop/Reset Push

Functions :

• Diesel engine starts after the absence of main supply in 5 sec. Four more starting impulses if the gen. set does not start in first stroke.
• Diesel engine set stops after the resumption of main supply with a delay time of 30 seconds.
• Facility of stopping the generator after the resumption of all three phases is also available in case of three phase.
• The equipment can be operated in both Auto and Manual mode according to desired output.
• Generator can be stopped any time either in the absence of mains in manual mode.
• Inbuilt battery charger is provided to charge the battery during mains mode with auto cut and trickle boost charging facility which keeps the battery voltage stable.
• An ampere meter is provided to know the flow of charging current during the battery charging condition.

Working of Buttons :

• Manual Start push is used to start the generator manual in manual mode.
• Mains on switch is used to stop the generator during the presence of mains.
• Auto/Manual selection switch is used to change the working status of unit.
• Manual Stop push has 2 types of working.
  • To stop the engine manually when the unit is in manual mode.
  • To reset the unit in case of fail to start condition.
