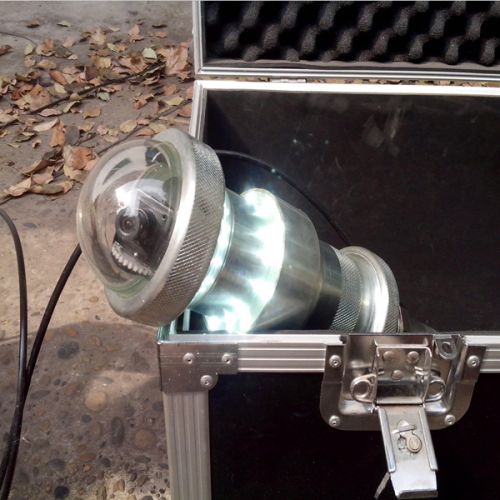

Geological Camera

Main applications and features
jkx-2 drilling full hole wall imaging system adopts reflective axicon lens to take 360° hole wall images, image acquisition and processing by means of computer to form a continuous hole wall developed image. The hole wall image are developed following the order n→e→s→w→n. The longitude connection of images are jointed as per the order of depth, thus the overall hole-wall image is fully understand at a glance.
data processing function
· browsing, real-time display of position and depth
· marking of images and literal texts
· making of interpretation lines on images
· for convolution rotation, see coregraph
· calculate the inclination of stratum construction
· measure the thickness of rock stratum and the width of cracks
technical specifications
1vp-p pal tv signal 75ω video output
1vp-p pal tv signal 75ω video output
definition: 450tvl
viewing angle: 360° hole wall
lighting: built-in k3200° trichromatic lighting ring
probe diameter: φ70mm
adaptation aperture: φ75~φ300mm
power supply: ac220v±10% 50hz
software operating environment: win2000/xp
adapted hole depth: 0~300mm clear water hole or dry hole
3. Products showcase
related products
4,why gold team
gold'sproducts spread all over the world
gold established in 2009,gold is a high -tech enterprise specializing in design,manufacture and sale of geological instrument.
gold's products are manufactured stricity in accordance with industrial standard and have passed through quality and technical standard evaluation as well as quality inspection.
1.second to none slaes service
2. Our factory self-produced, the quality can be strictly controlled quick delivery, firm package
3.professional sales team, providing any feedback from the keen customers
4. Regarding customer benefit as the starting point, pay attention to the real needs of the customer
5. Is09001 certificate.
6.shipping by express delivery tnt,ups,ems,dhl,fedex,dpex etc.
air freight and sea transportation
we are ready for all challenges!
