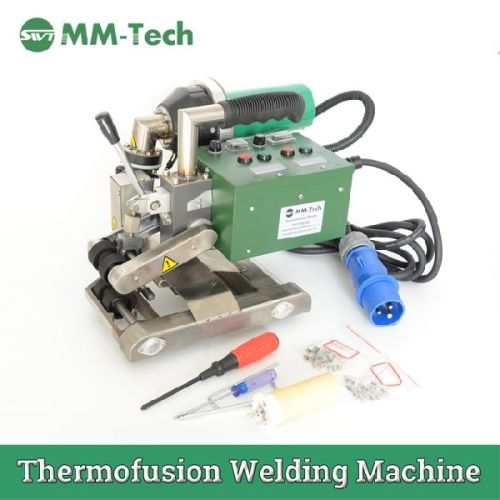

Geomembrane Hot Wedge Welder For PP Pe

Geomembrane Hot Wedge Welder,Hot Wedge Geomembrane Welder , SWT-NS700 pe Geo membrane Welder welds 0.5mm-2.0mm thickness membrane. which is adopts advanced hot wedge strcuture.Pp membrane Welding Machines With its high power,high speed and pressure.This Plastic Geo membrane Welding Machine, Geomembrane Welder & Automatic  Geomembrane Welding Machine Pvc Geomembrane Welding Machine is specially desgined for water conservancy,aquaculture,landfills,chemical mining,sewage treatment,roof constructions and other waterproofing projects. SWT-NS700 PVC sheet Geomembrane Wedge Welding with stepless adjustable temperature and drive. Voltage 220 V ± 5% Frequency 5060Hz Power 1200W Welding temp 0-450 ℃ Welding Speed 0.5-8 mmin Thickness of material 0.5-2.0 mm Welding width 15 mm *2, interior cavity 20 mm Overlap width 120 mm Seam Strength ≥85% base material ( tensile resistant in shear direction) Weight 7.5 Kg Size 350(L) X 267mm(W) X 267mm(H)  Hot Wedge PVC Geomembrane Welder is an Hot Wedge Welding Machine for overlap welding and manufacturing of films and geomembrane liners in tunnels as well as earthwork and civil engineering. The heat is transmitted by using the best combination of contact and hot air. Especially well-suited for overhead welding
