Geomembrane Wedge Welding

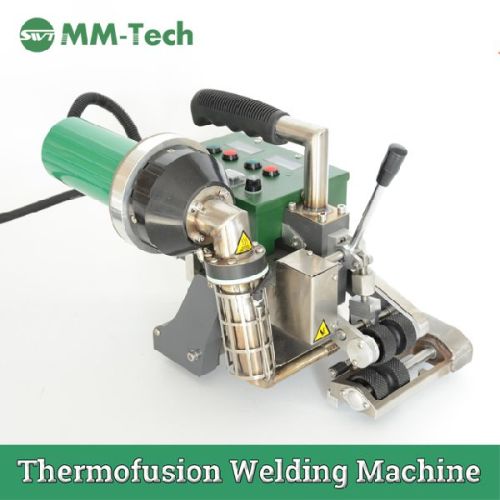

Geomembrane Wedge Welding SWT-NS700 Geomembrane Welder Machines, Extrusion Welding Welder welds 0.5mm-2.0mm thickness membrane. which is adopts advanced hot wedge strcuture.Geomembrane Welder Testing With its high power,high speed and pressure.This Geomembrane Welder & Automatic  Geomembrane Welding Machine PE Geomembrane Wedge Welder  is specially desgined for water conservancy,aquaculture,landfills,chemical mining,sewage treatment,roof constructions and other waterproofing projects. SWT-NS700 Geomembrane Wedge Welding with stepless adjustable temperature and drive. Voltage 220 V ± 5% Frequency 5060Hz Power 1200W Welding temp 0-450 ℃ Welding Speed 0.5-8 mmin Thickness of material 0.5-2.0 mm Welding width 15 mm *2, interior cavity 20 mm Overlap width 120 mm Seam Strength ≥85% base material ( tensile resistant in shear direction) Weight 7.5 Kg Size 350(L) X 267mm(W) X 267mm(H)  Geomembrane Welder is an CNC Hot Wedge Welding Machine for overlap welding and manufacturing of films and geomembrane liners in tunnels as well as earthwork and civil engineering. The heat is transmitted by using the best combination of contact and hot air. Especially well-suited for overhead welding in install geomebrane, civil engineering, tunnel engineering.
