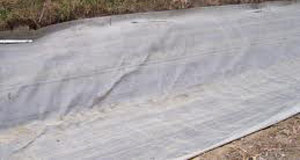

Geosynthetic Clay Liners 1

₹ 149 - ₹ 172 / Square Meter

MOQ2500 SQM
MaterialBentonite Clay Sandwiched Between Woven And Non-woven Geotextile
Storage TypeDry And Cool Environment
FeatureInfiltration/Hydraulic Barrier
Number Of FlowerGeosynthetic Clay Liners
ApplicationsHazardous Solid Waste Landfill,Municipal Solid Waste Landfill
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

ApplicationsHazardous Solid Waste Landfill,Municipal Solid Waste Landfill
Storage TypeDry And Cool Environment
Number Of FlowerGeosynthetic Clay Liners
MaterialBentonite Clay Sandwiched Between Woven And Non-woven Geotextile
FeatureInfiltration/Hydraulic Barrier

GEO CLAY LINER are geo composite that are manufactured with a betonies clay sandwich between to top and bottom geotextile where in one layer is woven geotextile & other is needle punch non woven geotextile.

APPLICATION

Hazardous Solid Waste Land Filled

Municipal Solid Waste Land Filled

PRIMARY FUNCTION

Infiltration / Hydraulic barrier

Tensile Properties	Unit	Value
Hydraulic Conductivity	Cm/sec	5 x 10-9
Bentonite	Kg /sqm	3.60 (min)
Bentonite Swell Index	Ml/2Kg	24
Grab Strength	N/m	600
GCL Index Flux	M3/m2/sec	1 x 10-8
Roll Width(1)	M	5.80
Roll Length(2)	M	30
