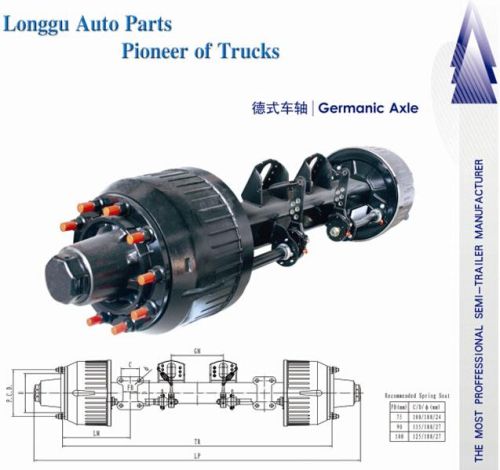

Germanic Axle

We are offering germanic axle
axle technical date( special request available)
axle type 105kmh rate load (kg) "s" cam brake series∮ *width(mm) trake tr(mm) spring seat installation lm (mm) axle tube(mm) center distance of brake chammer gm(mm) wheel fixing total length (mm) weight (kg)
stus p.c.d (mm) ∮h (mm)
lg12ay-011 12,000 420*180 1820 ≤435 ○127 402 10-m22*1.5 iso 335 281 2135 355
lg12af-012 12,000 420*180 1840 ≤455 □150 422 10-m22*1.5 iso 335 281 2155 360
lg12af-013 12,000 420*200 1840 ≤455 □150 354 10-m22*1.5 iso 335 281 2155 373
lg12af-014 12,000 420*180 2040 ≤455 □150 622 8-m20*1.5 iso 285 221 2355 375
lg14af-015 14,000 420*200 1840 ≤455 □150 354 10-m22*1.5 iso 335 281 2185 410
lg14ay-016 14,000 420*220 1840 ≤455 □150 354 10-m22*1.5 iso 335 281 2185 415
lg16af-017 16,000 420*200 1850 ≤455 □150 356 10-m22*1.5 iso 335 281 2240 442
lg16af-018 16,000 420*220 1850 ≤455 □150 376 10-m22*1.5 iso 335 281 2240 455
lg16af-019 16,000 420*220 1850 ≤455 □150 376 10-m22*1.5 iso 335 281 2240 475.
