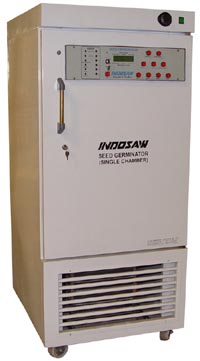

GERMINATION EQUIPMENTS

• No. of chambers : One (heating and cooling).
• Capacity : 10 cuft. (Approx.)
• Chamber size : Length 550mm, Height 950mm, Width 550mm.
• Inside chamber : Stainless steel grade 304.
• Outside chamber : Painted steel of 20SWG.
• No. of trays : 3 adjustable stainless steel wiremesh trays. Tray size 530mm x 530mm.
• Humidity : Humidity with Ultrasonic Humidifier.
• Water Purifier : To provide purified water to Ultrasonic Humidifier.
• Temperature & Humidity sensor : Imported Hygro-clip for measurement of temperature & Humidity. Non-condensing type.
• Temperature : 10°C-50°C±1°C.
• Compressor : Hermetically sealed type of standard make. Kirloskar / Copeland make.
• Evaporator : Finned tubes.
• Electronics : Micro controller based.
• Operating voltage : 220V, 50Hz Ac±10%.
• Panel switches : Large 2cm diameter switches with silver plated contacts.
• Backup : Data logging facility to record 1000 readings.
• Programming : User friendly programming for temperature, humidity and light level with time steps.
• In-built UPS : Keeps monitoring the panel during power failure (optional).
• Watch dog timer : Checks the program all the time.
• Program lock : Physical key type.
• Display : Large LCD display (2x16 characters).
• Interface : RS232 port. (RS485 Optional)
• Door panel : For fitting of all electronic circuits and control panel so that maintenance is easy and control panel is at a convenient.

ULTRASONIC HUMIDIFIER

• This type of Seed Germinator consist of Ultra-sonic Humidifier.
• Low power consumption app. 50 watt as comparison to 1 kw in steam humidifier.
• Humidity created by Piezo-Electric Crystal is very fine which is very helpful in germination process.
• It is safer since in the earlier Seed Germinator had a water tank inside the machine.
