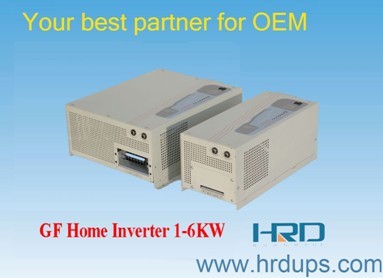

Gf Home Inverter 1-6kw, Packaging Type : black, Certification : CE

Introduction:
GF Home Inverter is specially designed for home appliance, such as light, fan, TV, Ice-box, air conditioner etc.
Main Features:
1) Pure sine wave
2)Auto advanced charger (Maximum 70A)
3) P.F.C. (power factor correction)
4) Less than 10ms transfer time for computer use
5)very Stable to stand with all kinds of inductive, capacitive loads ect.
6)Perfect compatible with Generator
Technical Specification:
Model GF 1012 GF2012 GF3012 GF4048 GF5048 GF6048
Capacity 1kVA/1kW 2kVA/2kW 3kVA/3kW 4Kva/4kW 5Kva/5kW 6Kva/6kW
Input Nominal Voltage 220V or 110V
Voltage Range 180-270Vac(+/-4%) or 80-150Vac(+/-4%)
Frequency 50/60Hz(auto sensing)
Output Voltage 220Vac or110Vac+/-10%
Frequency 50/60Hz+/-1hz
Transfer Time 10ms(typical)
Wave form Pure sine wave
Battery voltage 1PCS*12Vdc 4PCS*12Vdc
Floating Charge Voltage(DC) 13.4Vdc+/-2% 52.6Vdc+/-2%
Alarm Voltage 10.5Vdc 42.0Vdc
Shutdown Voltage 10.0Vdc 40.0Vdc
Over Charge Protection 15.0Vdc 60.0Vdc
Max. Charge Current 70A 50A
Protection Full Protection Overload and Short Circuit and Over temperature
Safety Level Compliance with U1458/CE(EN60950)
EMI Classification FCC,CLASSA/EN50091-2,CLASSA
Audible Noise 60db ( 1M,Max)
Alarm Low Battery Beep 0.5s every 5s
Overload Beep 0.5s every 5s
Over temperature Beep 0.5s every 5s
Fault Beep continuously
Dimension Main Unit(mm) 442D*218W *179H 472D*318 W*199H
Packing(mm) 600D*337W*325H 650D*400W*369H
Weight
(Net/Gross) KG 18/20 20/22 22/24 35/39 45/49 48/52
