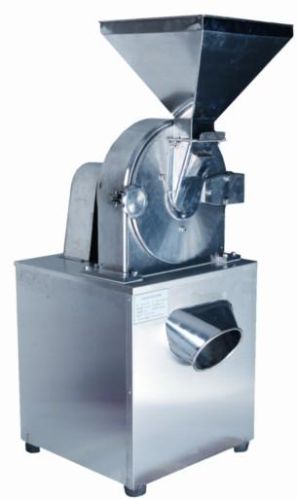

GF30B Model Turbo Automatic Cooling Pulverizer

Instruction and features：
This machine is first-class common pulverizer of latest international design.
A. In the course of traditional knock and crushing, the difficulty yet to overcome is that the materials produce the phenomenon of heating or denaturalization .However this machine adopts high-speed rotary motion of turbo type and also produces strong airstreams in crushing chamber.
C. The material is attracted to the crushing chamber from conveying entrance under the negative pressure, which is stroked by strong airstreams; the strong airstreams produces the turbo shock between vane and module. After materials are stroked, cut and ground, it will take away energy from crushing chamber so the energy can’t be focused and rising temperature, the powder flows out from sieve net, the machine improves production efficiency, the crushing fineness being adjustable automatically by the mesh of sieve net so that the fineness becomes more average and stable.
Main technical parameter
1：Production capacity:100-300kg/h 2: Rotary speed of main arbor:3800r/h
3：Crushing fineness: 80-120mesh 4： Feeding fineness:＜12mm
5：Motor power: 5.5kw 6： Overall dimension: 800 x600x 1500mm
7：Net weight:380kg
