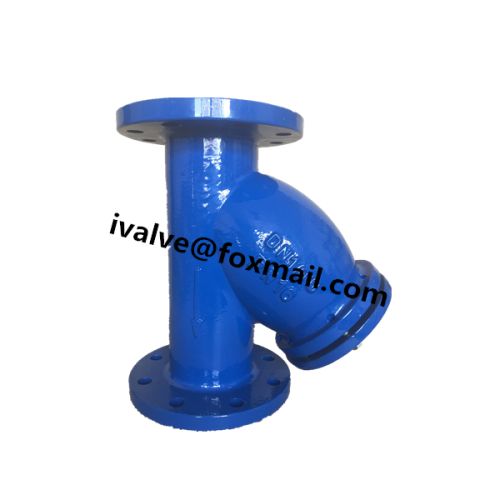

Cast Iron GG25 Flanged Y Strainer, Brand Name : Y-Strainer

₹ 900.90 / Piece

MOQ10 Piece(s)
MaterialCast Iron
Port SizeDN15-DN600
Brand NameY-Strainer
PressurePN10/PN16/ANSI125
Country of OriginChina
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 1998

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Country of OriginChina
Brand NameY-Strainer
MaterialCast Iron
PressurePN10/PN16/ANSI125
Port SizeDN15-DN600

GG25 Flanged Y Strainer
Our Range:Butterfly Valve,Gate Valve,Check Valve,Globe Valve,Ball Valve,Y Strainer,Rubber Joint
Cast Iron Y Type Strainer
Specifications
1. Suitable media: Water, oil.
2. Nominal diameter: DN15-DN600(12"-24").
3. Working temperature: -20 to 200 centigrade.
4. Tightness check: API 598ISO 5208EN12226-1.
5. Flange: DIN2501EN1092-2 PN101625 or ANSI B16.10; Thread: NPTBSPBSPT
6. Standard: DIN3202 F1, ANSI CLASS 125, BS4504 PN16.
7. Face-to-face conform to DIN3352DIN3202 F1(ISO5752)EN558-1. BS2080.
8. Working pressure: PN10PN16PN25 or 10Bar16Bar25Bar or class 125lbs-150lbs.
9. Body coating: Fusion bonded epoxy coating or bitumen coating at customers' request.
Main parts materials
1) Screen: Stainless Steel SS304SS201.
2) Bolt and Plug: Carbon Steel or Stainless Steel.
3) Gasket: NBREPDMSynthetic Fiber ( Asbestos Free).
4) Body and Cover: Cast ironductile ironCIDIGG25GGG40GGG50HT200QT450WCBcast steel.
Packaging & Delivery
Packaging Detail: Plywood case.
Delivery Detail: General within 30 days or according to the order quantity.
