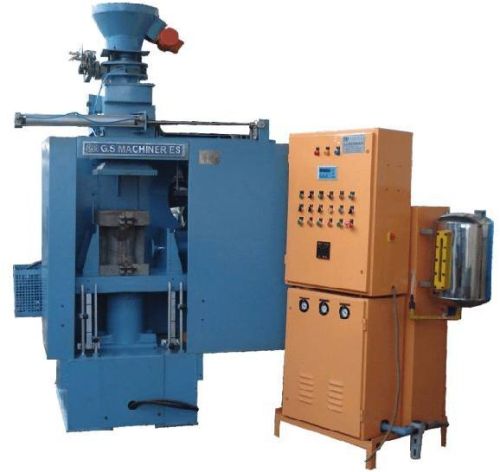

GH series cold box core shooter

GH series cold box core shooter

Listing ID #3796345

Get Latest Price
  • Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer From : All over the world

Operating sequence:     Manually place the core box Sand gate open and close by push pull valve horizontal clamp close Table up Shooting Table down Position the gas mag Table up Gassing on Table down Gas mag pull out Manually remove the core boxCustum build to your need     Optional:   Core box clamping – Hydraulic Control –
View More Details
Send Enquiry

Company Information

G. S. Machinery
Wazirpur, Delhi
View Number
  • Member Since 14 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

Operating sequence:





  1. Manually place the core box
  2. Sand gate open and close by push pull valve
  3. horizontal clamp close
  4. Table up
  5. Shooting
  6. Table down
  7. Position the gas mag
  8. Table up
  9. Gassing on
  10. Table down
  11. Gas mag pull out
  12. Manually remove the core boxCustum build to your need





Optional:



  • Core box clamping – Hydraulic
  • Control – PLC
  • Enclosure


GH series cold box core shooter GH 3 GH 5 GH 12
Maximum core box size (mm) 300x150x200 350x150x250 450x200x300
Maximum core weight (kg) 3 5 12
Core Box parting Vertical/Horizontal Vertical/Horizontal Vertical/Horizontal
Cycle times maximum (seconds) 60 60 60
Core box clamping Pneumatic Pneumatic Pneumatic/Hydraulic
Amine gas generator Duel pressure Duel pressure Duel pressure
Operation Manual Manual Manual/Auto

Company Details close-icon

G.S.Machineries was started in the year 1999 to build core shooter and foundry machinery. Since then the company has sold more than 500 machinery in & around India. Our product portfolio includes Sand casting equipment, Aluminium casting equipment, Surface blasting, Band Saws and other special purpose machines. Based on the experience gained from the installed machines and customer feedbacks the company strives to build machines that better fit your production needs and innovate new projects.
