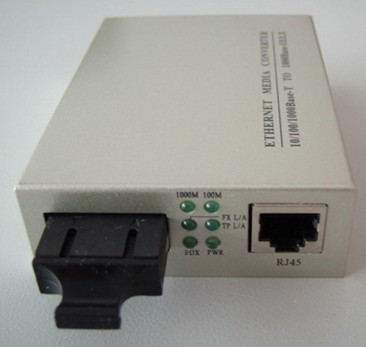

GIgabit Fiber Media Converter,single Mode

Description of Goods:
10/100/1000 Base Tx to 1000base Fx Wdm Media Converter Model No. Gwt1110s
　
applications:
　　gwt1110s Media Converter is 10/100/1000mbps Fast Ethernet Converter. the Converter Mediates Between a 10/100/1000base-tx Segment and a 1000base-fx Segment. It is Primarily Designed for Large, Higher Speed/bandwidth Demanding Workgroups that Require Expansion of the Ethernet Network. It Can Extend the Conventional 10m Ethernet or 100/1000m Fast Ethernet to 120km Max. Via Fiber Optic Cable. It is High-performance, Cost Effective and Flexible Solution for a Wide Range of Applications in the Field of Lan Campus Network.
features:
◆auto Learning, Auto Updating, Auto Stocking and Auto Transmitting
　　◆buffer Storage Band Dimension is 256kb, Directory Meter Dimension is 4kb
　　◆ethernet 10base-t or 100base-tx to 100base-fx with Optical Fiber Cable as Medium
　　◆providing Hot Plug-draw Performance
　　◆using Particular Switch Chip Design with 1m Ssram Buffer,2k Mac Address List
　　◆full Duplex and Semi-duplex is Available with Auto Negotiation
　　◆have One Rj-45 Port and One Fiber Port
　　◆providing Tx 1000mbps、100mbps、10mbps Auto Negotiation，fx Working Rate is 1.25gbps
　　◆good Optical Fx Characteristic and Tx Characteristic
　　◆providing Long-distance Tx and Tx Characteristic to Ensure Stability of Data Transmitting, Long Lifespan
　　◆providing Rj-45 Nic and Hub, Using Nic to Connect with Computer
　　◆working Time Without Any Trouble is More Than 50 Thousand Hours
specifications:
protocol ieee802.3 Ieee802.3u Ieee802.3x
fiber Port sc/st
copper Port rj-45 Port
network Cable 2pairs of Category 5 Utp (max:100m)
fiber Optic Cable smf：8/125,9/125,10/125μm (20/40/80/100km)
dimensions(wxdxh) 156x128x32mm (internal Power)
input Voltage dc-48v ( Internal Power )
operational Temperature 0 ℃ ~70 ℃
store Temperature -40 ℃ ~80 ℃
humidity 5%~95% No Coagulation
