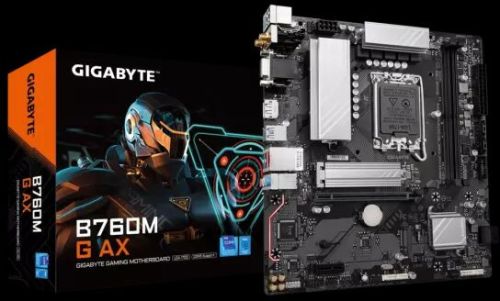

Gigabyte B760M G Ax Wifi DDR5 Motherboard For Intel 12th | 13th | 14th Gen

₹ 11,925 / Piece

ChipsetIntel B760 Express Chipset
Internal I/O Connectors1 x 24-pin ATX main power connector. 1 x 8-pin ATX 12V power connector. 1 x CPU fan header. 3 x system fan headers. 2 x addressable LED strip headers. 1 x RGB LED strip header. 2 x M.2 Socket 3 connectors. 4 x SATA 6Gb/s connectors.
Onboard GraphicsIntegrated Graphics Processor - Intel® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz. Support for HDMI 2.1 version and HDCP 2.3.
Storage InterfaceCPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU). Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB). - 4 x SATA 6Gb/s connectors. RAID 0, RAID 1, RAID 5,
Supply TypeRetailer
Preferred Buyer Location India only

Company Information

Member Since 2 Years
Nature of Business Supplier
GST No. 08AAQFM0499P1ZA

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

ChipsetIntel B760 Express Chipset
Storage InterfaceCPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU). Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB). - 4 x SATA 6Gb/s connectors. RAID 0, RAID 1, RAID 5,
Onboard GraphicsIntegrated Graphics Processor - Intel® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz. Support for HDMI 2.1 version and HDCP 2.3.
Internal I/O Connectors1 x 24-pin ATX main power connector. 1 x 8-pin ATX 12V power connector. 1 x CPU fan header. 3 x system fan headers. 2 x addressable LED strip headers. 1 x RGB LED strip header. 2 x M.2 Socket 3 connectors. 4 x SATA 6Gb/s connectors.
USBChipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support. - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header). - 2 x USB 2.0/1.1 ports on the back panel. Chipset + USB
Expansion SlotsCPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16. * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1.
CPULGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors. L3 cache varies with CPU.
I/O ControlleriTE® I/O Controller Chip
Wireless Communication moduleIntel® Wi-Fi 6E AX211: - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands. - BLUETOOTH 5.3. - Support for 11ax 160MHz wireless standard. (Actual data rate may vary depending on environment and equipment.)
H/W MonitoringVoltage detection. Temperature detection. Fan speed detection. Water cooling flow rate detection. Fan fail warning. Fan speed control. * Whether the fan speed control function is supported will depend on the fan you install.
Memory14th and 13th Generation Intel® Core™ i9/i7 Processors: - Support for DDR5 8000(O.C.) / 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600/5200/4800/440
BIOS1 x 128 Mbit flash. Use of licensed AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0.
Back Panel Connectors2 x USB 2.0/1.1 ports. 1 x PS/2 keyboard/mouse port. 2 x SMA antenna connectors (1T1R) / (2T2R). 1 x D-Sub port. 1 x HDMI port. 1 x DisplayPort. 3 x USB 3.2 Gen 1 ports. 1 x USB Type-C® port, with USB 3.2 Gen 1 support. 1 x RJ-45
