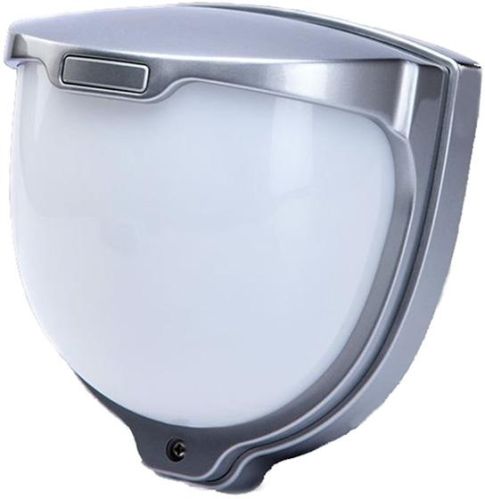

Contact SupplierWe offer gjd-300.
Large inside space for easy installation and operation
automatic temperature compensation, high detecting sensitivity
built-in anti-tamper funtion
multiple waterproof design; strong stealing; good waterproof effect
free rotary structure design allowing detecting angle adjustable freely
pet immunity
super anti-outdoor sunlight function
advanced micro-computer process technology, no false alarm
supports standard interface for various alarm pannels
technical parameter:
power supply: dc 10-14v
static current: 15ma
working current: 7ma
detecting angle: 80° — 110°
direction adjustment: 80° (leftright)40° (tilt angle)
installation height: 3.5m (max. )2.5m (ideal)
response time: 5 seconds
detecting interval: 8 seconds
warm-up time: 60 seconds
alarm output: nc or no optional
anti-tamper: nc
alarm indicator: led (onoff)
double anti-sunlight: 30000lux
ip rating: ip55
working temperature: -20° c~55° c
size: 155mm× 170mm× 115mm
