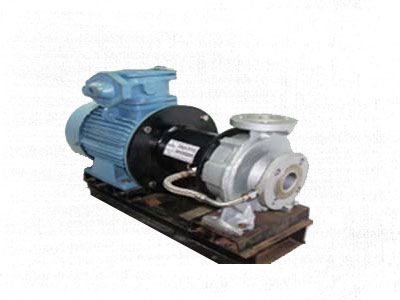

Glandless PP Pump

Listing ID #3836605

  • Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer From : All over the world

Features: Seal lessGland lessNon magnetic driven Working principle: we have made shaft and stuffing box long and provide special arrangement in stuffing box with groove on shaft in such a way that....
View More Details
Send Enquiry

Company Information

  • Member Since 8 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

Features:

Seal less
Gland less
Non magnetic driven Working principle: we have made shaft and stuffing box long and provide special arrangement in stuffing box with groove on shaft in such a way that liquid which come out from stuffing box will go back again to casing . Some liquid is may be come out but due to deep stuffing box it will remain in stuffing box and we have provide one hole in box which is connected to suction flange of pump by pipe line so liquid will again move to suction line and thus pump do not have any leakage from shaft . This pump is very ideal for solvents , acids and corrosives liquids where maintenance of mechanical seal is costly and also time consuming . Our complete CF series pumps will be soon available with above features and after some time we also give PP pumps with same features.



Water Rating Chart of:CFL

"CFS" SERIES
Model Hp Size Head in Metres Discharge in LPM at 2900 RPM
3 5 7 10 12 15 17 20 22 25 27 30 35 40
SPP-1 0.25 12 x 12 40 32 - - - - - - - - - - - -
SPP-2 0.5 25 x 25 - 100 45 - - - - - - - - - - -
SPP-3 1 25 x 25 - - 140 120 70 35 - - - - - - - -
SPP-3A 1 38 x 38 - - 181 95 50 - - - - - - - - -
SPP-4A 1.5 38 x 38 - - - - - 160 130 90 75 - - - - -
SPP-4B 1.5 50 x 50 - - - - - 250 166 85 - - - - - -
SPP-5A 2 38 x 38 - - - - 225 190 155 105 78 40 - - - -
SPP-5B 2 50 x 50 - - 330 250 160 80 - - - - - - - -
SPP-6A 3 50 x 38 - - - - - - 250 220 180 135 108 50 - -
SPP-6B 3 50 x 50 - - - - - 330 300 280 225 150 85 - - -
Model Hp Size Head in Metres Discharge in LPM at 2900 RPM
16 20 24 28 32 36 40 44 48
SPP-7A 5 50 x 38 - - 260 230 190 145 90 - -
SPP-7B 5 50 x 50 400 370 300 230 180 - - - -
SPP-8A 7.5 50 x 38 - - 290 280 250 225 190 120 60
SPP-8B 7.5 65 x 50 500 450 385 280 230 - - - -
SPP-9A 10 50 x 38 - 500 480 470 450 410 350 290 190
SPP-9B 10 65 x 50 560 510 450 370 280 210 150 -

Company Details close-icon

DEEP ENGINEERING CO. has started it's operation in Ahmedabad in year 2015 as a manufacturers of Domestic Pumps with a motto to provide water solution to the Domestic, Agricultural and Industrial Sector. The company reached the market under the brand name 'KLASSIC' and is now a well known brand in the field of domestic Water Pumps.
DEEP ENGINEERING CO., holds out the Quality Assurance of an ISO 9001:2008 certification from BSCIC Registered subsequent to the Registration Assessment of our QUALITY MANAGEMENT SYSTEM. The company is committed to quality work and confident to meet the challenging requirement of customers.
DEEP ENGINEERING CO. was established in year 2015 by Shri Pankaj P Shah. He has more than 30 years of rich experience in the field of Manufacturing, Developing, Research and Marketing of water pumps. Our technically qualified and experienced manpower has been stressed to no compromise attitude on the Quality has proved to be encouraging & paved a path to tremendous growth in the short span of time and developed a very sound goodwill in the market for ‘KLASSIC’ brand.
R&D being a part of continuous process, the company continuously working seriously towards this direction and develop products regularly to fulfill the market demand. Our solid performance has proved as the bench mark and level of trust in the market on our products. The company has its well established Distributors/Dealers network in Gujarat, Rajasthan, M.P., Maharashtra and wish to cover more areas all over India.
As the company believes in Quality, we inspect each and every Pump manually & with testing parameters. The Company follows the standard ISI norms in Quality Control on all pumps manufactured. The company provides Pumps with ISI Certification IS:8472:1998, and IS:14220:1994.
We are growing continuously due to our well experienced and technically trained team and their sincere dedication for Quality products to our customers and providing quality and timely after Sales & Services to our Customers.
