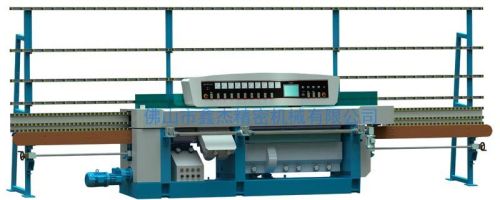

Glass Flat Edger & Variable Miter Edging Machine

We offer Glass flat edger & variable miter edging machine.
NJM9 is suitable for processing miter edge, bottom edge and arrise on glass piece with different size and thickness. Miter spindle and front arise spindle are moving along with the front beam, so it is very easy to adjust miter angle and processing thickness. The miter edge and bottom edge are as bright as original after processing.
Product description:
1.Front beam is electrical controlled.
2.Input and output conveyors adopt timing belt which can improve the stability of transmission. And the timing belt is easy to replace during maintaining.
3.Water tank is stainless steel.
4.A special design of the input and output section for controlling the grinding amount of glass without adjusting each spindle individually.
5.Front beam and rear beam are processed by CNC processing center.
6.Brand of low-voltage electrical apparatus is Schneider.
7.Miter angle, thickness, and remaining thickness are showed and adjusted by digital display or PLC.
Technical parameters:
1.Processing glass thickness: 3-25mm
2.Miter angle：0°-60°（It means angle on glass is 30°-90°）
3.Min. Processing size：80mm×80mm
4.Spindle quantity: 9
5.Processing speed：1.2-6.0mmin
6.Installation power: 20.3KW
7.Occupation land: 7.8m（length）×1.4m（width）×2.5m(height)
