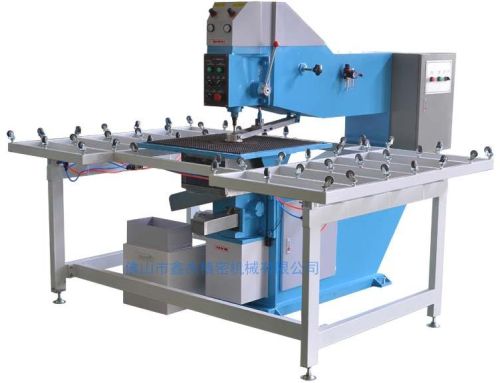

XZJ125 is suitable for drilling flat glass piece.
Product description:
1. Different sizes of holes can be drilled with different diameters of bits.
2. It is high working efficiency and easy operation.
3. Two options:
Semi-automatic: Lower drilling bit is controlled by a cylinder while the upper bit is operated by manual
Automatic: Both of the lower and upper drilling bits are fed by cylinder.
Technical parameters:
1.Hole Diameter: �5~�130 (�220) mm
2.Glass thickness: 4 ~19 mm
3.Max. Processing width: 2400mm
4.Distance between drilling center and back column: 1250 mm
6.Size: 2200�2500�1700mm
7.Weight: 1200KG
8.Power: 4.95Kw
