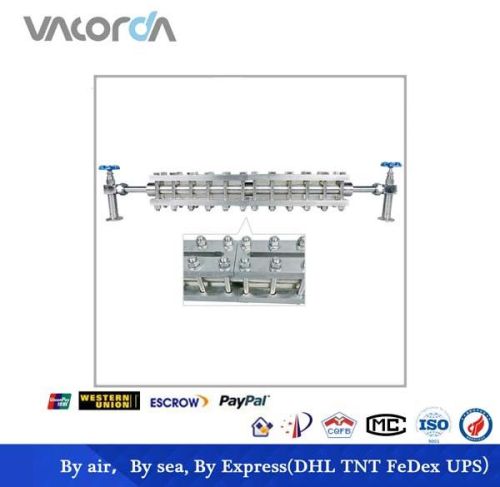

The level meter is mainly composed by level meter`s body, upper valve (gas valve), lower valve (liquid valve), drain valve, insurance steel ball and so on. It is an ideal instrument for detecting for liquid level in all kinds of containers with middle or low pressure. We have emerged as a prominent Manufacturer and Supplier of Glass Plate Liquid Level Meter from Sichuan, China. We make available different types of Glass Plate Liquid Level Meter like Transparent type, reflection-type and sight glass type. When the glass plate have some cracks or be damaged, the insurance steel ball will automatically stop the side valve of gas and liquid to avoid or reduce flowing. So the worker can cut off the bottom valve to handle it. The Glass Plate Liquid Level Meter offered by us is stable, sealed and reliable, simple installation. Connect the upper and lower flanges of this level meter with the upper and lower flanges of the container to form a permeator and then the height of liquid can be directly seen.
Nominal length (center to center ) | 0~300-0~2000mm |
|---|---|
Recommended length | 550, 850, 1150, 1450, 1750mm |
Material | Carbon steel, 304, 316L |
Nominal pressure (MPa) | Transparent type: 2.5, 6.3; Reflection-type: 4.0; Sight glass type: 0.1, 0.6 |
Working temperature | 0~250o C |
Connection flange | DN20 (3/4"); A,B type-HG20592 ; C type-HG20615-09 |
Heating steam cube connector | RC1/4 internal thread |
Heating steam pressure | ≤1.0MPa |
Steel ball closing pressure | ≥0.3MPa |
Code of flange type (unnecessary for S type) | ||||||
A:RF face flange | B:M face flange | S:without flange | ||||
Type of level gauge | ||||||
T:Transparent type | R:reflection-type | S:sight glass type | ||||
Nominal pressure (MPa) | ||||||
T type: 2.5 or 6.3 | R type:4.0 | S type:0.1 or 0.6 | ||||
Material code | ||||||
I: carbon steel | II: 304 | V:316L | III:carbon lined PTFE (only for S type) | |||
Code of structure (unnecessary for S type) | ||||||
No mark:standard | W:warm keep | J:neck type(for S type only) | Q:inserted type(for S type only) | |||
Center-center distance (unnecessary for S type) | ||||||
Value of distance (mm) | ||||||
Code of drain type (unnecessary for S type) | ||||||
V:drain needle valve | P: drain plug | |||||
