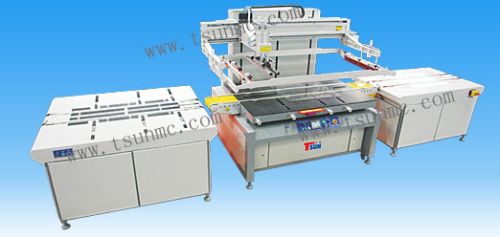

Automatic Glass Silk Screen Printing Machine, Brand Name : Tsun

We offer Glass Silk Screen Printing Machine.
Purpose: applicable for printing of glass, such as electric glass, decorative glass colorful glittering glass .
Features
●the printing shelf up and down by electricity,running fast and stably, and precise positioning.
●with automatic output function, connected with dry line, ensures the quality of product and improves the production.
●with blowing function，ensure printing material not to be damaged, with vacuum adsorption device for light material , easy to position.
●with servo system of the printing and off-screen , guarantee high speed, high precision and stable printing.
specific data ts8012gl ts8016gl ts8020gl ts8026gl
max glass size 800mm*1200mm 800mm*1600mm 800mm*2000mm 800mm*2600mm
max screen size 1050mm*1500mm 1050mm*1900mm 1050mm*2300mm 1050mm*2900mm
thickness 2-19mm 2-19mm 2-19mm 2-19mm
totoal power 380v 50hz 4.5kw 380v 50hz 4.5kw 380v 50hz 4.5kw 380v 50hz 4.5kw
totoal weight 1200kg 1300kg 1500kg 1800kg
machine size 1800*1550*2200mm 1800*1550*2600mm 1800*1550*3000mm 1800*1550*3600mm
