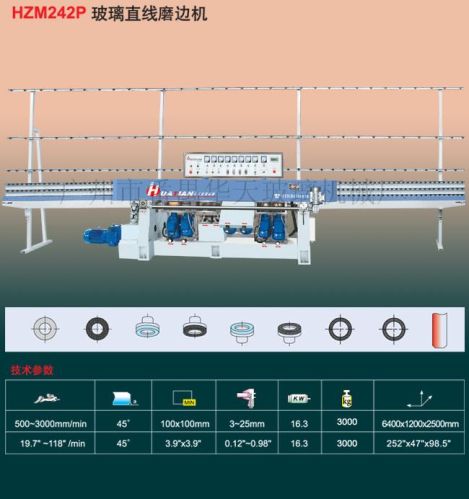

Contact SupplierWe are offering glass straight line beveling machine.
feature: this machine is suitable for flat glass straight-line bevel grinding and polishing. Adjust speed with stepless regulator, three rough grinding, three fine grinding, two pneumatic polishing and one bottom grinding can be completed in one procession. The controlling system adopts plc, it can accomplish automatic or manual operation. Processed glass thickness, left bottom thickness(after grinding) and bevel width can be displayed in graph and digit by lcd touch screen. From setting to rough grinding, fine grinding and polishing, it can be finished in one procession.
technical specifications:
the number of motors:9个
grinding speed:500~2500mm/min
maximum beveling width:35mm
bevel angle: 3°~ 20°
thickness of processed glass:4 ~20mm
size of processed glass:max: 3000 x 3000mm min: 130 x 130mm
total power:18.3kw
weight: 4800 kg
size:7760(l) x 1400(w) x2450 (h)mm.
