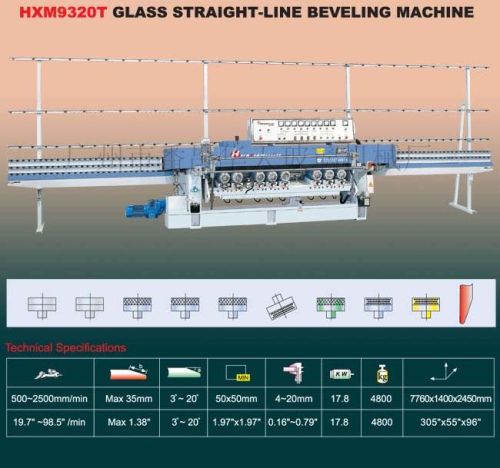

Glass Straight-line Beveling Machine

We are offering hxm9320t glass straight-line beveling machine.
feature: this machine is suitable for grinding flat glass straight-line bevel of different size and thickness. Adjust speed with stepless regulator, three rough grinding, three fine grinding, two pneumatic polishing and one bottom grinding can be completed in one procession. This machine has adjustable front beam, especially for small size glass procession. It is an ideal product improved from our original equipment.
technical specifications：
the number of motors：9个
grinding speed：500~2500mm/min
maximum beveling width： 30mm
bevel angle： 3°~ 20°
thickness of processed glass：4 ~20mm
size of processed glass：max: 3000 x 3000mm min: 50 x 50mm
total power：17.5kw
weight：4800 kg
size：7760(l) x 1400(w) x2450 (h)mm
