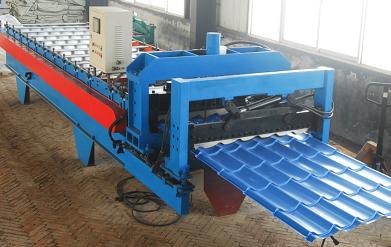

Glazed Roof Sheet Forming Machine

We are offering Glazed Roof Sheet Forming Machine.
manual decoiler
maximum width of coiling: 1000mm
maximum weight of loading: 5000kg
main forming machine
number of forming rollers: 11-13groups
material of shaft: 45# steel adjustable treatment. Outer diameter 75mm
material of roller: 45#steel, plating hard chrome on the surface, rigidity hr55°-57°
main motor power: 3kw
speed of forming: 3m/min
stand: 300# steel welding
the plating chromium of rollers’ surface: 0.05mm
thickness of the steel: 0.4-0.8mm
chains: 1 inch
thickness of wall plate: 14mm
dimension of the machine: 6 m*1m*1.5m (depend on final design)
weight of the machine: 4 ton (depend on final design)
hydraulic cutter
material of blade:cr12 mould steel with quenched treatment 60-62℃
cutting system: adopt advanced hydraulic drive, after forming automatic cut, no distort, no wasting , high safe factor.
Function and structure: cutting the forming sheet.
Hydraulic press forming
pressing material: cr12 mould steel with quenched treatment 60-62℃
hydraulic drive
function: press the mark on the steel plate, make it look like steel tile.
electrical control system
the brand of display: 5.7 inch
the main computer (plc): tai da dvp14es
function and operation: control the starting ,operation and stopping of the whole line, including distribution section, operation table, counting instrument. Use plc to control, set and adjust the length.
hydraulic system
adopting advanced hydraulic system of tai wan
power: 3kw
function: apply power for cutting machine
