Glazed Tile Production Machine

We are offering glazed tile production machine.

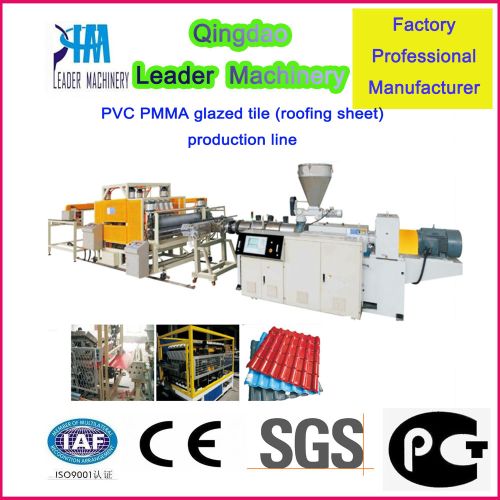

This pvc+pmma(asa) bamboo roofing sheet co-extrusion line consists of main extruders, t-die and calibrating downstream units, which can continuously extrude single layer pvc glazed tiles, pvcpmma and pvcasa composite multi-layer galzed tiles.
part 2: main techinical data:
extruder model
sjsz80156 + sj6530
capacity
350kgh+50kgh
sheet specifications
width: 7208801050mm
wave pitch:160mm
wave length:220mm
wave height:30mm
thickness:0.8-3mm
emboss rollers
1400mm*φ300mm
t-die head
jc-times brand
corrugation forming machine max haul off power
20kn
haul off speed
0.3-5mmin
cutting machine
pneumatic saw cutting
stacker
6m
ridge tiles forming machine
with end cover, slope ridge for step roof, t ridge for step roof, top ridge for step roof
other accessory machines
high speed mixer, plastic crusher, plastic pulverizer etc
part 3: advantages and applications
compared with other ordinary plastic tiles, this kind of composite glazed tiles have more beautiful appearance, better quality, strong durability, and some special features: such as fire retardant, impact capacity, anti-corrossion, anti-freeze, waterpfoof, weather resistance and color retention etc,
the glazed roofing tiles are wised in the garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
synthetic resin tile, is the use of high-tech chemistry and chemical technology developed by new building materials, light weight, high strength, many fine features waterproof, corrosion retardant, noise insulation, etc., generally applicable to zone flat to pitched, farmers market, shopping malls, residential quarters, the new rural construction of luxury villas residents, awning, sunshadesantique buildings, garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
