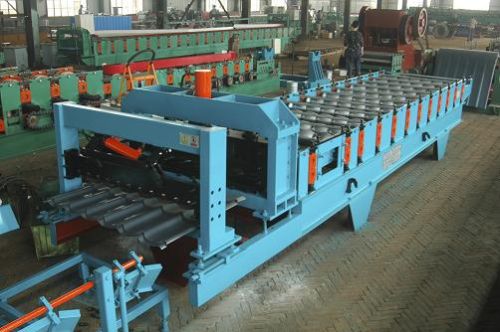

Glazed Tile Roll Forming Machine

We are offering glazed tile roll forming machine / 1100 glazed tile forming machine.
number of forming rollers: 11 groups
material of shaft: 45# steel adjustable treatment. Outer diameter 70mm
material of roller: 45#steel, plating hard chrome on the surface, rigidity hr55â°-57â°
main motor power: 4 kw
speed of forming: 3m/min
stand: 350# steel welding
the plating chromium of rollers� surface: 0.05mm
thickness of the steel: 0.3-0.7mm
chains: 1 inch
thickness of wall plate: 14mm
dimension of the machine: about 6m*1.5m*1.5m
weight of the machine:about 4500kg
hydraulic cutter
material of blade:cr12 mould steel with quenched treatment 60-62�
cutting system: adopt advanced hydraulic drive, after forming automatic cut, no distort, no wasting , high safe factor.
function and structure: cutting the forming sheet.
hydraulic press forming
pressing material: cr12 mould steel with quenched treatment 60-62�
hydraulic drive
function: press the mark on the steel plate, make it look like steel tile.
electrical control system
display: textscr delta plc with transducer keep tolerance withinâ±2mmï¼� encoder: rui pu or xin y (wu xi) frequency converter: sanjing (guang zhou )
controlling screen : liquid crystal display(text panel)
electric relay : delixi jqx-13f2z circuit breaker : delixi
function and operation: control the starting ,operation and stopping of the whole line, including distribution section, operation table, counting instrument. Use plc to control, set and adjust the length.
hydraulic system
adopting advanced hydraulic system
power: 3kw
function: apply power for cutting machine.
