Globe Valve, Specialities : Investment Casting, Durable

Valve Size1/2inch
SpecialitiesInvestment Casting, Durable
ConditionNew
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location All over the world

Features Reduced Or Full Port Compact Outside Screw & Yoke Spiral Wound Gasket Of Stainless Steel Bolted Bonnet or Welted Bonnet Socket Weld Or Threaded Ends Integral Hardfaced Seat Applicable Stabdards Basic Design, BS 5352 & Ansi B16.34 Socket-Weld (S.W) Ansi B16.11 Threaded End (S.E) Ansi B1.20.1 Valve Test And Inspect :API 598 Standard Material: A105N, LF2, F5, F11, F22, F304, F304L, F316,

View More Details

Send Enquiry

Company Information

Balaji Group of Industries

Kotharia, Rajkot, Gujarat

View Number

Member Since 12 Years
Nature of Business Retailer
Year of Establishment 2006

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

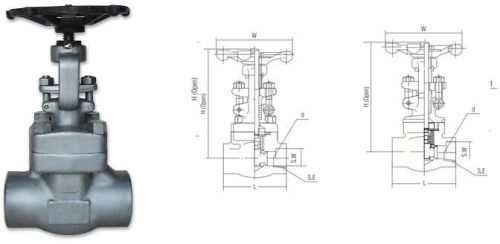

Dimensions:

Nominal size	Reduced Port	Mm(in)	8(1/4)	10(3/8)	15(1/2)	20(3/4)	25(1)	32(1 1/4)	40(1 1/2)	50(2)	-
Nominal size	Full Port	Mm(in)	-	-	10(3/8)	15(1/2)	20(3/4)	25(1)	32(1 1/4)	40(1 1/2)	50 (2)
D (Bore Size)		mm	8	10	10	13	17	23	30	37	46
L		mm	79	79	79	92	111	130	152	172	200
H (Open)		mm	176	176	176	176	212	230	254	294	327
w		mm	100	100	100	100	125	160	160	180	200
Weight	B.B	kg	2.2	2.1	1.9	2.1	3.9	5.8	7.2	10.8	16
Weight	W.B	kg	1.9	1.8	1.7	2.1	3.7	5.2	6.2	10.4	14.8
