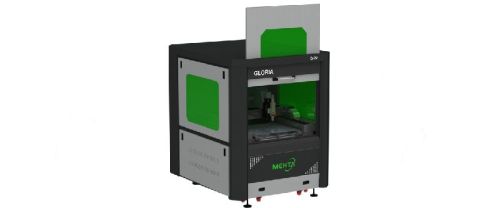

Gloria Fiber Laser Metal Cutting M C

Get Latest Price

Red Guide Laser Power0.5 ~1 mW
Working Area600 x 600 mm
Operation ModeCW/Pulse
Position Accuracy±0.04 mm
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

MEHTA CAD CAM SYSTEMS PVT. LTD.

Ahmedabad, Gujarat

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Operation ModeCW/Pulse
Polarization StateRandom
Cutting HeadBT-230Cut
Max. Cutting Speed30000 mm/min (Adjustable according to different cutting thickness)
Driving SystemAC Servo Motor and Drivers
ModelGLORIA-Q22
Output Power Unstability< 3%
Max. Peak Power1500 W
Repetition Rate1-5000 Hz
Red Guide Laser Power0.5 ~1 mW
Emission Wavelength1080 nm
Working Voltage380V/220V
Pulse Duration≤ ± 0.1 - 50 ms
Line Duration< 15 nm
Total Power Consumpted18 KW
Working Area600 x 600 mm
Cooling SystemWater Cooling
TransmissionX, Y, Z Axis all with imported ball screw.
Max. Pulse Power15 J
Max. Average Power (W)150 (Pulse), 210 (CW)
Minimum Line Width< 0.12 mm
Position Accuracy±0.04 mm

Q22 Is Special For High Precision Machinery Parts And Microelectronics And Jewelry Industries. Q22 Is Very High Speed And Higher Precision Professional Machine For Cutting Thin Metal Sheet Like Stainless Steel, M.S., Carbon Steel, Galvanized Steel, Copper, Aluminum, Brass, Gold, Silver Etc.
