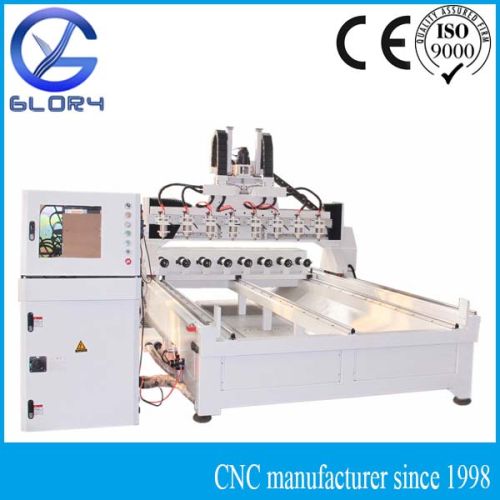

Glory Cylinder Engraving CNC Router

We are offering glory cylinder engraving cnc router.
key features:
1. Seamless steel lathe bed
2. Germany ball screw
3. Helical rack and pinion
4. Well compatibility: type 3, castmate, artcam, etc
5. Re-carving function after power failure
6. Servo motors
7. Manual oil-injection system
8. Weihong operating system
9. Gantry movement
10. High soft electric cables
11. French schneider for small electric parts
12. Water-cooling system
13. Eight rotary axes can work independently or synchronously
ideal for:
timberwoodfoambamboo cylinders, etc.
Processing effect:
engraving, cutting, drilling, milling, enchase, relief, etc.
Specification gy-ms3020k-8
working diameter 225mm
working length 1500mm
table size 2140*3000mm
spindle 2.2kw
spindle speed adjustable 0-24,000 rpm
tool change manual tool-change
drive system
(x & y axes) helical rack & pinion
linear guide taiwan hiwin 30mm
drive system
(z axis) germany ball screw
drive motors yaskawa servo motors
inverter fulingdelta
driver yaskawa
command g code
cutter diameter φ3.175-φ12.7mm
maximum idling speed 40mmin
resolution 0.01mm
fixing by clamp
cooling mode water-cooled
controller weihong computer
power requirements 3-phase 380v50hz
weight 2200kg
custom sizes and upgrades for the components are available on request.
Optional parts:
1. Dspsyntec controller
2. More or less rotary axis
3. Automatic oil-injection system
4. Different power requirements
5. Air-cooled system
6. Added t-slot table above the rotary axes, etc.
