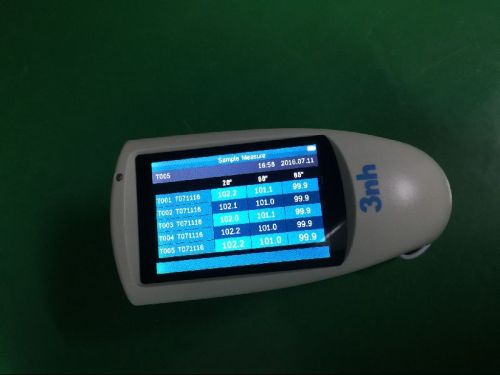

Gloss Meter, Brand Name : 3nh for glossy test

Features:
1. 20, 60 and 85 degree in one: from high to low gloss - have the specified angle on hand
2. Concise appearance, feel good
3. Display 5 sets of measurement data, good for comparison
4. Built-in lithium ion rechargeable battery
5. Basic model measurement can meet basic glossiness testing requirements
6. Connect to pc, more extend functions
7. One button for all angles measurement at the same location
8. Comply with international standards
9. Stable performance, easy to read data.
gqc6 software introduction:
gqc6 software is used with 3nh gloss meter for pc connection, measurement, data management, data export, print reports, etc.
Specifications:
model: hg268 tri-angle gloss meter
measuring angle: 20 degree60 degree85 degree
comply with standard iso 2813, gbt 9754, astm d 523, astm d 2457
measuring area (mm): 20 degree: 10x10 60 degree: 9x15 85 degree: 5x36
measuring range: 20 degree:0~1000gu 60 degree:0~1000gu 85 degree:0~160gu
division value: 0.1gu
measurement range:
repeatability:
reproducibility:
0-10gu 10-100gu 100-1000gu
+- 0.1gu +- 0.2gu +- 0.2%gu
+- 0.2gu +- 0.5gu +- 0.5%gu
measurement standard: conform with jjg696 first class glossmeter working requirement
chromaticity corresponding: corresponding with cie 1931(2 degree) under cie c light source
errors: +-1.5 , +- 1.5%
measuring time: 0.1s
